SG-02DC
SG-02DC

SG-02DC

UGC PRE7466318
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.13 CAD - $8.13 CAD
$8.13 CAD
$8.13 CAD - $8.13 CAD
$8.13 CAD

Vendu en lots de : 1

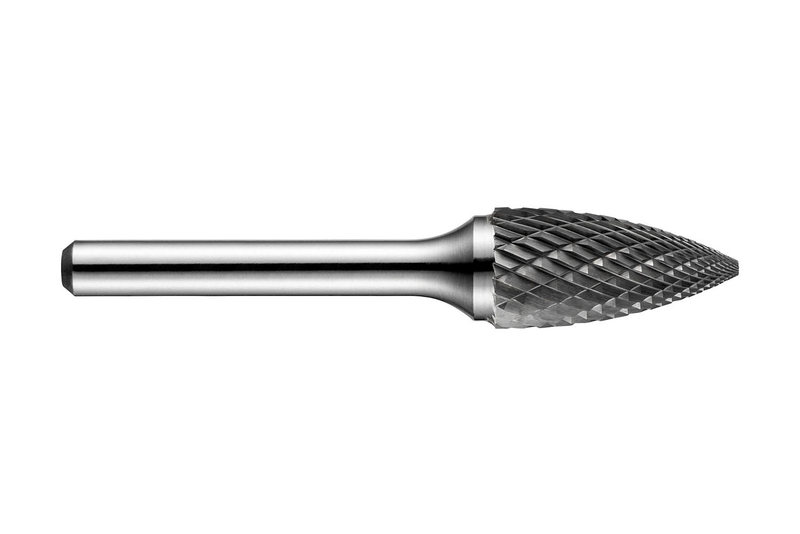

Fraise à bois conique (forme G), diamètre 1/8" avec longueur de coupe de 1/4", longueur totale de 1,1/2" et queue de 1/8", carbure monobloc avec finition brillante, double denture DC avec bords rapprochés pour le contournage multi-angle et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SG-02DC
GradeLumineux
Product Number7466318
Product FamilySG-DC
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Usable Length — mm (LU)6.35 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466318
EAN7320760787885
File Type Download

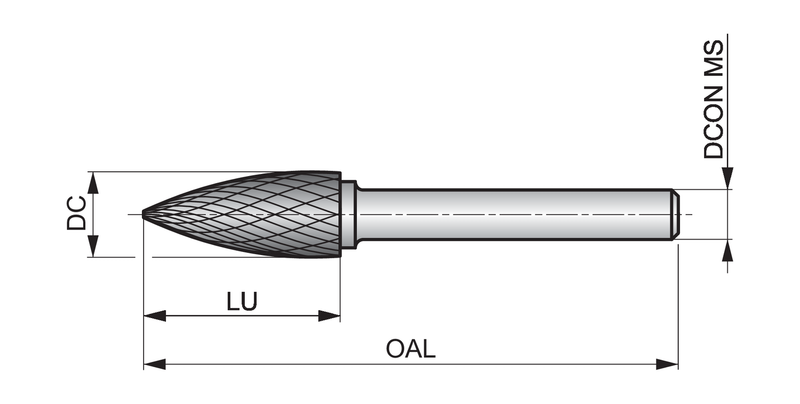

SG-02DC — Line Drawing PDF Download
