SG-30DC
SG-30DC

SG-30DC

UGC PRE7466324
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.56 CAD - $23.56 CAD
$23.56 CAD
$23.56 CAD - $23.56 CAD
$23.56 CAD

Vendu en lots de : 1

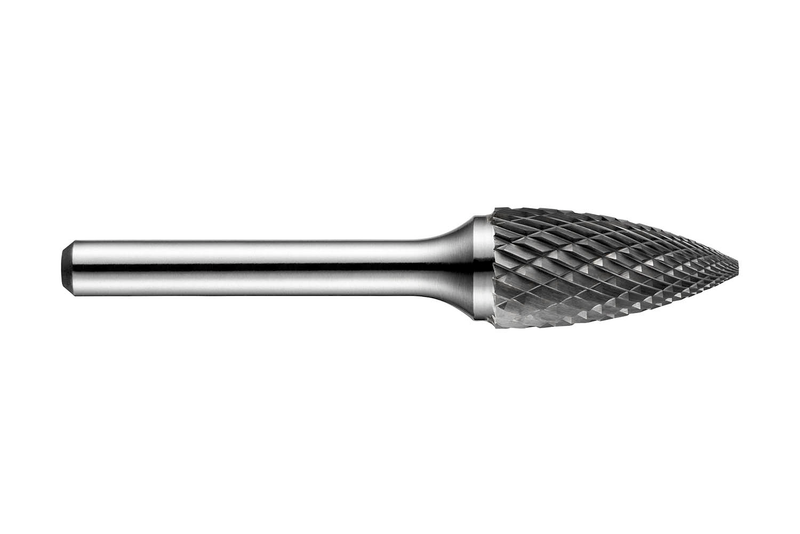

Fraise-lime conique (forme G), diamètre 3/8" avec une longueur de coupe de 3/4", longueur totale de 2.1/2" et queue de 1/4", pointe carbure avec queue en acier trempé et revenu et finition brillante, style de cannelure double taille DC avec bords rapprochés pour le profilage multi-angle et la coupe d'angles étroits dans les zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SG-30DC
GradeLumineux
Product Number7466324
Product FamilySG-DC
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)19.05 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466324
EAN7320760787946
File Type Download

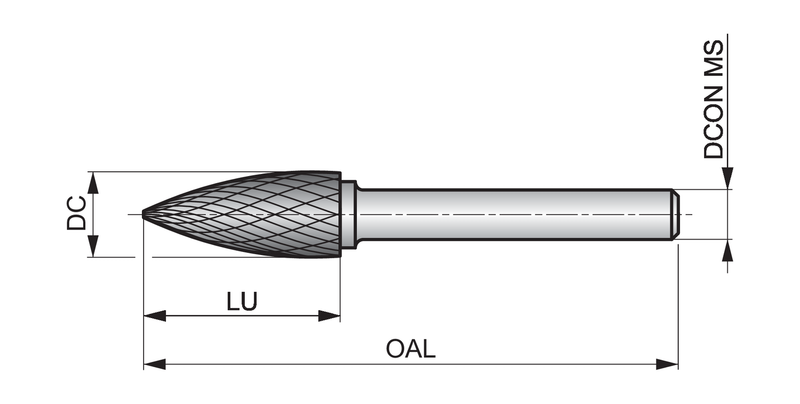

SG-30DC — Line Drawing PDF Download
