SH-02DC
SH-02DC

SH-02DC

UGC PRE7466331
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.13 CAD - $8.13 CAD
$8.13 CAD
$8.13 CAD - $8.13 CAD
$8.13 CAD

Vendu en lots de : 1

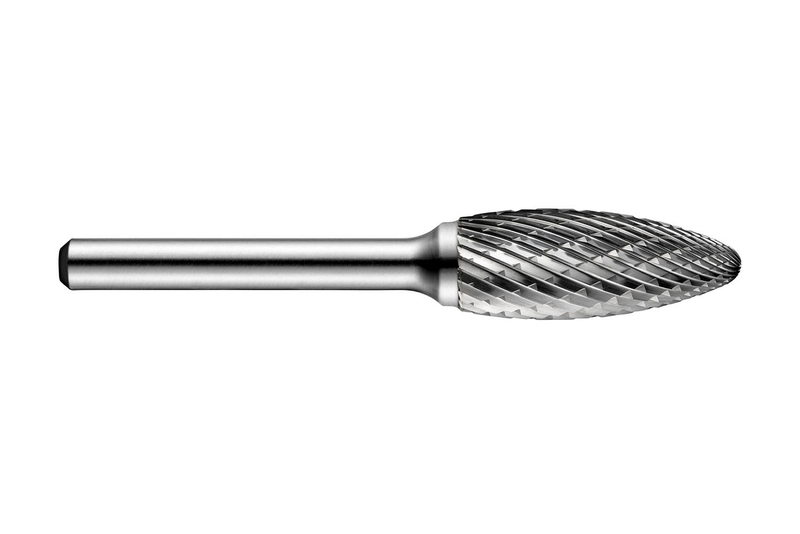

Fraise flamme (forme H), diamètre 1/8" avec longueur de coupe de 1/4", longueur totale de 1,1/2" et queue de 1/8", carbure monobloc avec finition brillante, style de cannelure double coupe DC avec bords rapprochés pour le profilage des bords ronds et la préparation de soudure dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SH-02DC
GradeLumineux
Product Number7466331
Product FamilySH-CC

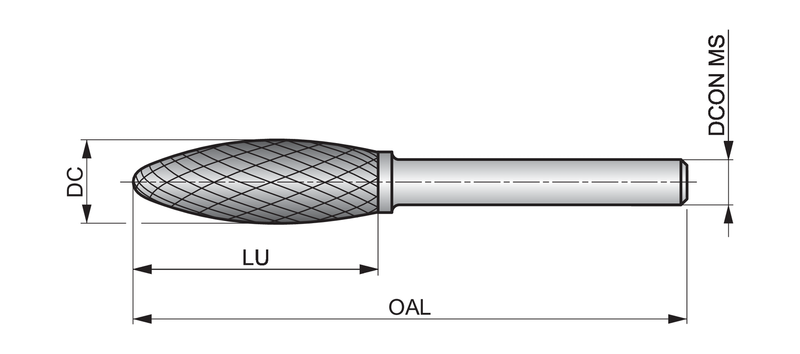

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Usable Length — mm (LU)6.35 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466331
EAN7320760788011
File Type Download
SH-02DC — Line Drawing PDF Download
