SJ-02DC
SJ-02DC

SJ-02DC

UGC PRE7466336
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.13 CAD - $8.13 CAD
$8.13 CAD
$8.13 CAD - $8.13 CAD
$8.13 CAD

Vendu en lots de : 1

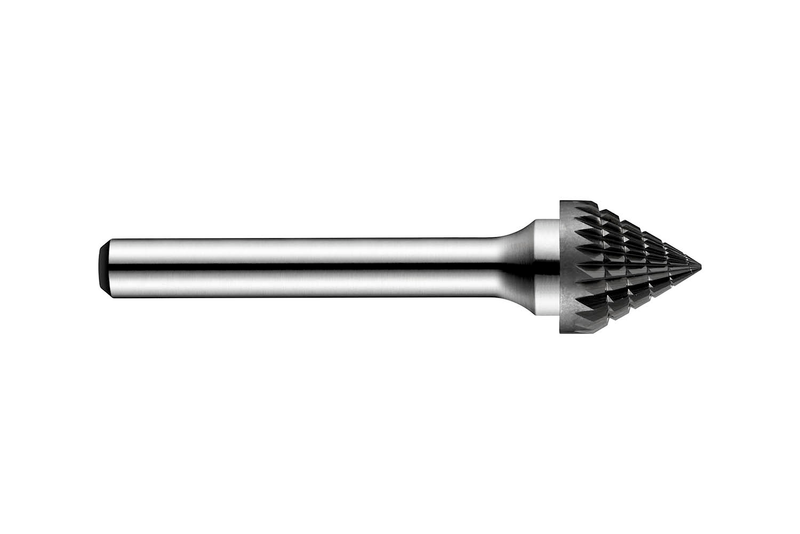

Fraise à chanfreiner 60° (forme J), diamètre 1/8" avec 3/32" de longueur de coupe, 1,1/2" de longueur totale et 1/8" de queue, carbure monobloc finition brillante, taille DC double coupe avec arêtes rapprochées pour le chanfreinage, la réalisation de rainures en V et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SJ-02DC
GradeLumineux
Product Number7466336
Product FamilySJ-DC
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Usable Length — mm (LU)2.38 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466336
EAN7320760788066
File Type Download

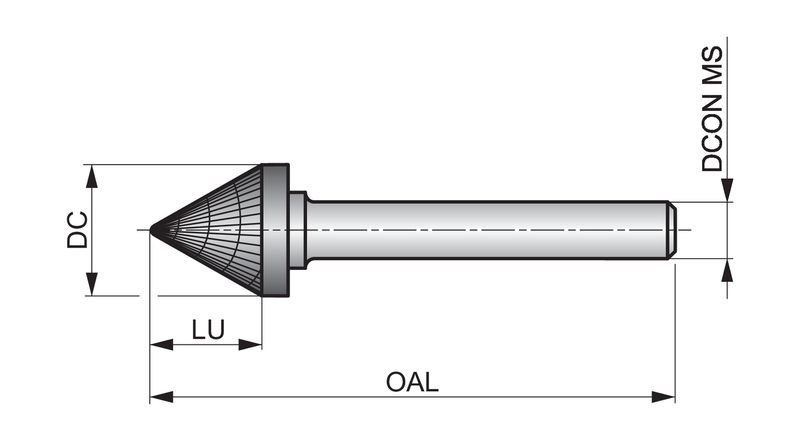

SJ-02DC — Line Drawing PDF Download
