SJ-10DC
SJ-10DC

SJ-10DC

UGC PRE7466337
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.24 CAD - $17.24 CAD
$17.24 CAD
$17.24 CAD - $17.24 CAD
$17.24 CAD

Vendu en lots de : 1

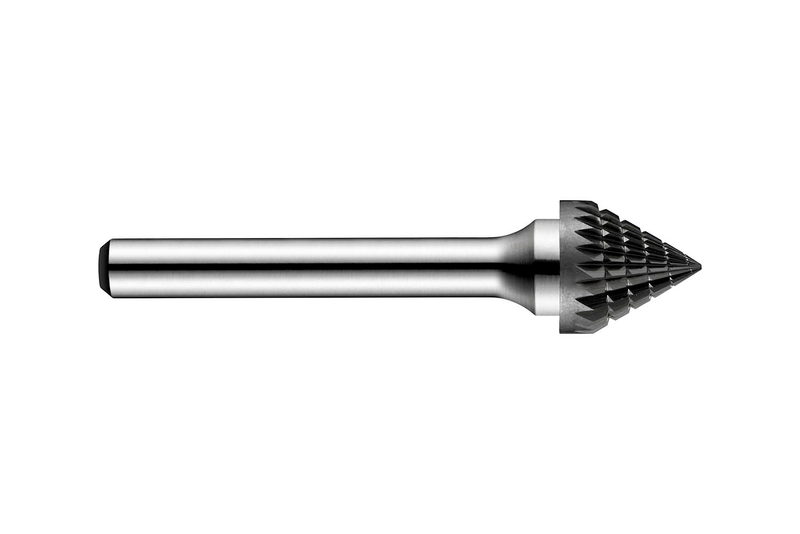

Fraise-lime à chanfreiner 60° (forme J), diamètre 1/4" avec 3/16" de longueur de coupe, 2" de longueur totale et queue 1/4", carbure monobloc finition brillante, taille de denture double coupe DC avec arêtes espacées pour le chanfreinage, la réalisation de rainures en V et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SJ-10DC
GradeLumineux
Product Number7466337
Product FamilySJ-DC

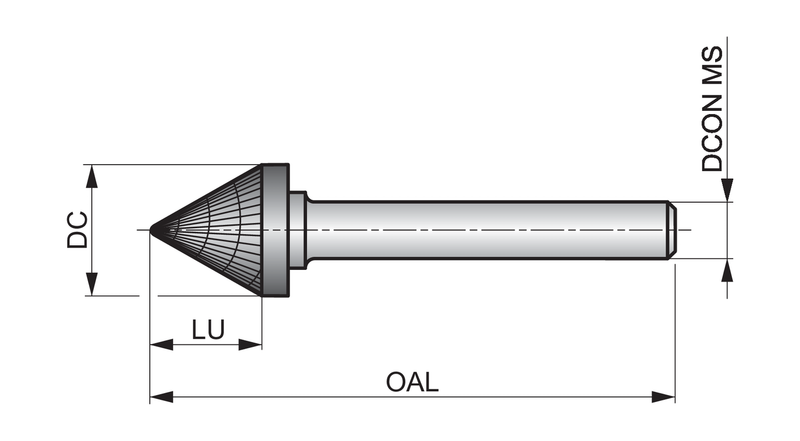

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)4.76 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)60°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466337
EAN7320760788073
File Type Download
SJ-10DC — Line Drawing PDF Download
