SJ-60DC
SJ-60DC

SJ-60DC

UGC PRE7466340
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.01 CAD - $34.01 CAD
$34.01 CAD
$34.01 CAD - $34.01 CAD
$34.01 CAD

Vendu en lots de : 1

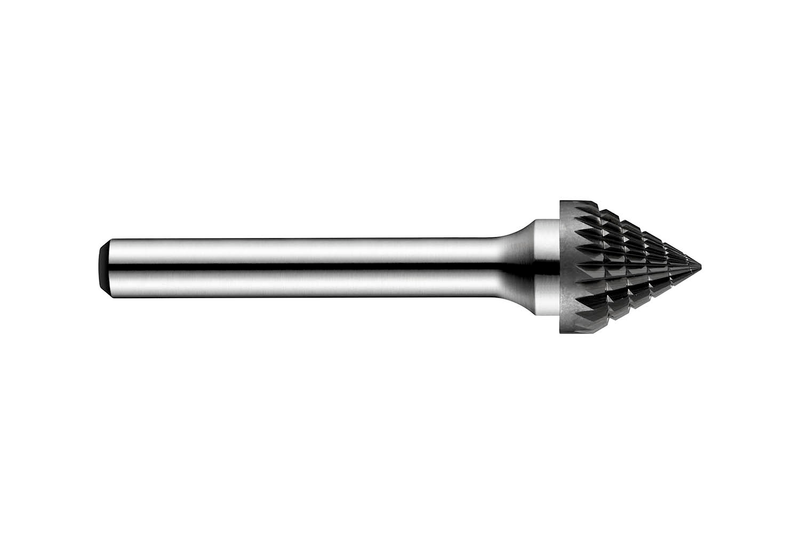

Fraise à chanfreiner 60° (forme J), diamètre 5/8" avec longueur de coupe 9/16", longueur totale 2.5/16" et queue 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, double denture DC à espacement serré pour le chanfreinage, la réalisation de coupes en V et la préparation de soudures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)SJ-60CC
Product Name (ISO)SJ-60DC
GradeLumineux
Product Number7466340
Product FamilySJ-DC
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)2.3125"
Overall Length — mm (OAL)58.74 mm
Usable Length — mm (LU)14.29 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)60°
Tool Information
ShankTige cylindrique
Reference Numbers
EDP Number7466340
EAN7320760788103
File Type Download

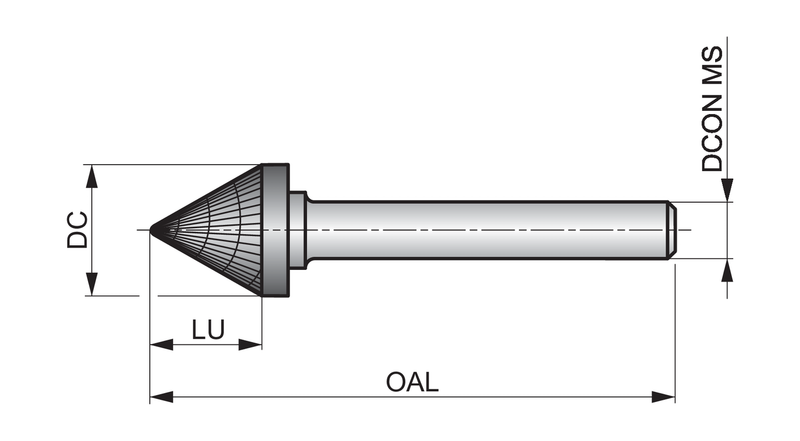

SJ-60DC — Line Drawing PDF Download
