SL-10DC
SL-10DC

SL-10DC

UGC PRE7466348
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.93 CAD - $18.93 CAD
$18.93 CAD
$18.93 CAD - $18.93 CAD
$18.93 CAD

Vendu en lots de : 1

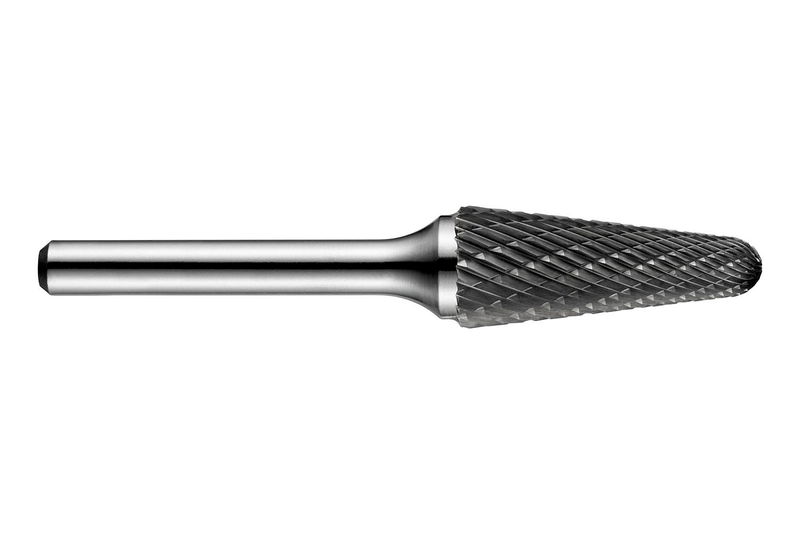

Fraise conique à bout sphérique (forme L), diamètre 1/4" avec longueur de coupe 5/8", longueur totale 2" et queue 1/4", carbure monobloc avec finition brillante, double coupe DC à cannelures rapprochées pour l'agrandissement de trous, l'arrondissement de bords et le surfaçage dans des angles étroits ou d'autres zones difficiles d'accès dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)SL-10DC
Product Name (ISO)SL-10CC
GradeLumineux
Product Number7466348
Product FamilySL-CC
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Usable Length — mm (LU)15.88 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)14°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466348
EAN7320760788189
File Type Download

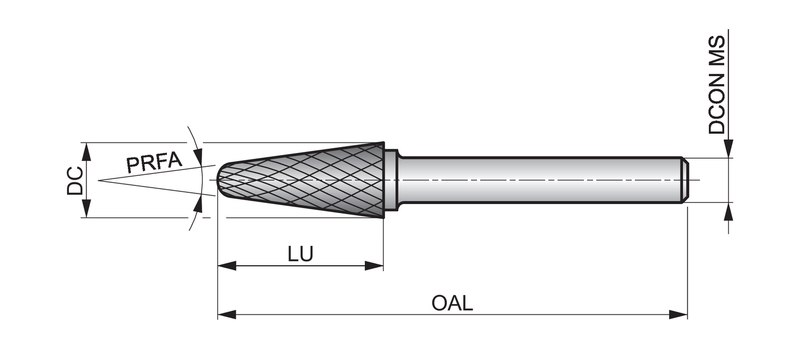

SL-10DC — Line Drawing PDF Download
