SN-30CC
SN-30CC

SN-30CC

UGC PRE7466374
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.16 CAD - $32.16 CAD
$32.16 CAD
$32.16 CAD - $32.16 CAD
$32.16 CAD

Vendu en lots de : 1

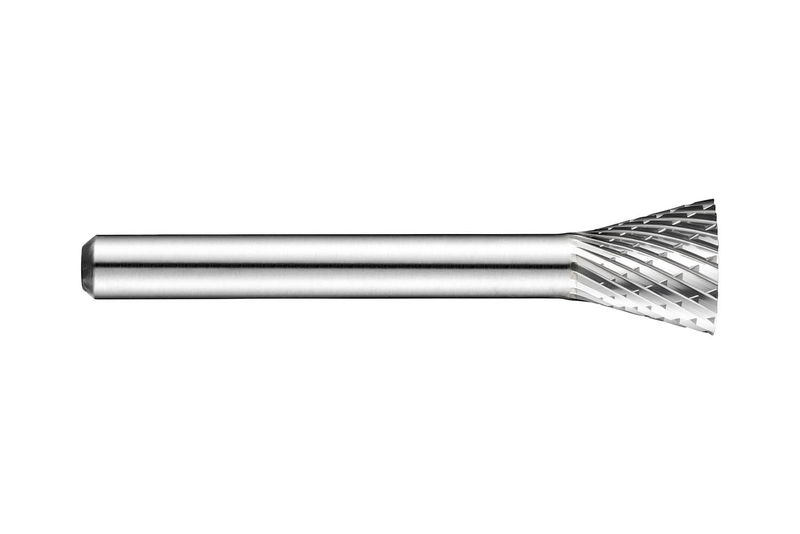

Fraise conique inversée (forme N), diamètre 3/8" avec longueur de coupe 3/8", longueur totale 2.1/8" et queue 1/4", à pointe carbure avec queue en acier trempé et revenu et finition brillante, double coupe DC avec arêtes rapprochées pour réaliser des découpes en V inversées et des chanfreins arrière dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre, les alliages à haute température, les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI)SN-30CC
Product Name (ISO)SN-30DC
GradeLumineux
Product Number7466374
Product FamilySN-DC
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.125"
Overall Length — mm (OAL)53.98 mm
Usable Length — mm (LU)9.53 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)13°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466374
EAN7320760788448
File Type Download

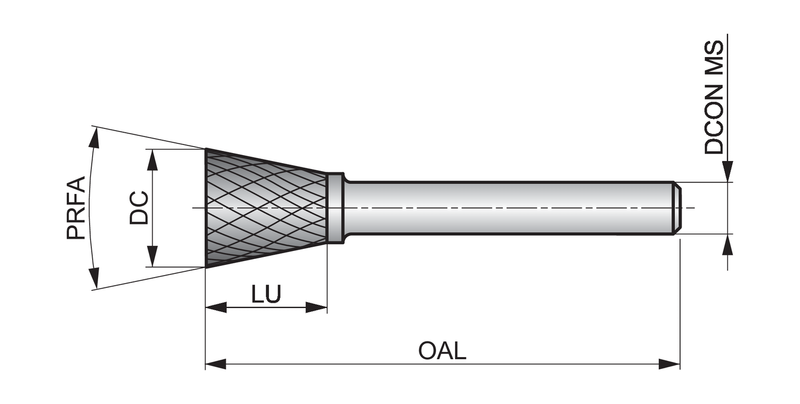

SN-30CC — Line Drawing PDF Download
