FGR-30A
FGR-30A

FGR-30A

UGC PRE7466379
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.94 CAD - $57.94 CAD
$57.94 CAD
$57.94 CAD - $57.94 CAD
$57.94 CAD

Vendu en lots de : 1

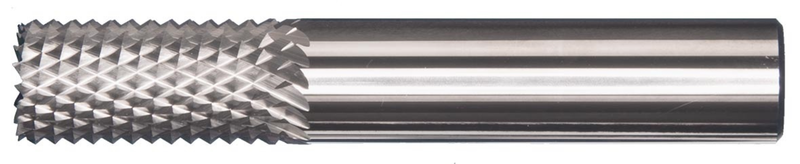

Défonceuse sans coupe en bout, diamètre 3/8" avec 1" de longueur de coupe, 2,1/2" de longueur totale et 3/8" de queue, carbure monobloc avec finition brillante, style de cannelure à coupe diamantée GRP avec bords espacés moyens pour le profilage et la découpe de formes dans les polymères renforcés de fibre de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)FGR-30A
GradeLumineux
Product Number7466379
Product FamilyFGR-A

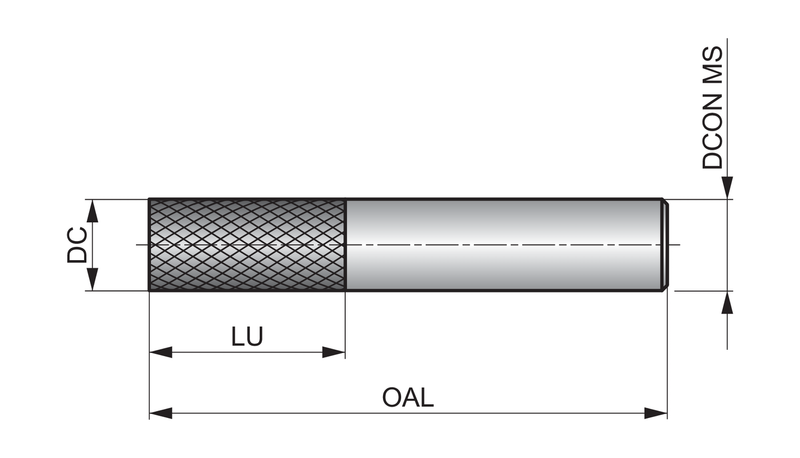

Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Usable Length — mm (LU)25.4 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)180°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466379
EAN7320760788493
File Type Download
FGR-30A — Line Drawing PDF Download
