FGR-10XD-L
FGR-10XD-L

FGR-10XD-L

UGC PRE7466389
par Precision Twist Drill
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.51 CAD - $35.51 CAD
$35.51 CAD
$35.51 CAD - $35.51 CAD
$35.51 CAD

Vendu en lots de : 1

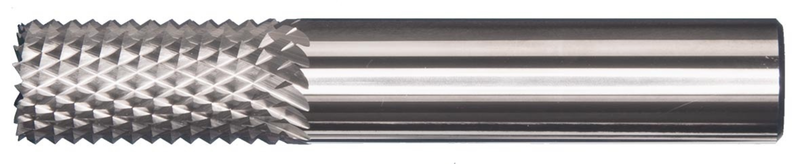

Fraise avec pointe de forage à 135°, diamètre 1/4" avec une longueur de coupe de 1,1/2", longueur totale de 3" et queue de 1/4", carbure monobloc avec finition brillante, style de cannelure diamant GRP avec bords espacés moyens pour le profilage, la découpe de formes et de trous dans les polymères renforcés de fibres de verre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)FGR-10XD-L
GradeLumineux
Product Number7466389
Product FamilyFGR-D

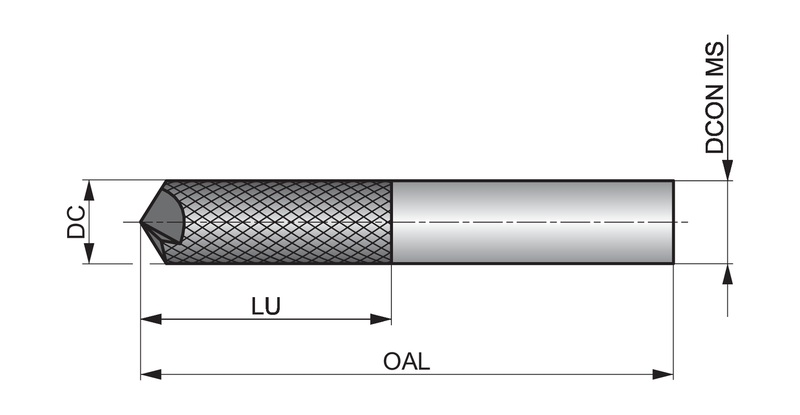

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Usable Length — mm (LU)38.1 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Reference Numbers
EDP Number7466389
EAN7320760788592
File Type Download
FGR-10XD-L — Line Drawing PDF Download
