UGC DOR7477732
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$329.00 CAD - $329.00 CAD
$329.00 CAD
$329.00 CAD - $329.00 CAD
$329.00 CAD

Vendu en lots de : 1

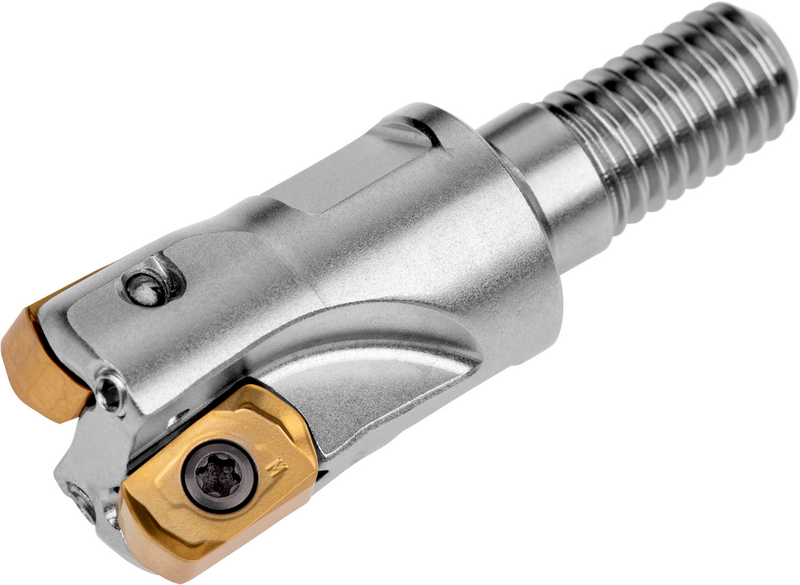

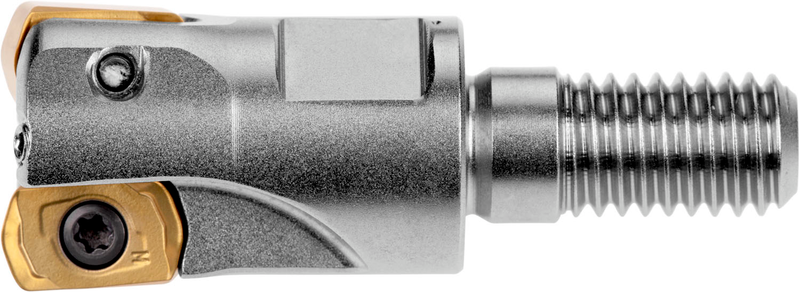

Fraise à avance élevée avec géométrie double négative utilisant 3 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 0,75'' avec un angle d'attaque de 20° et une queue filetée M10 pour porte-outils modulaires standards, longueur de dépassement de 1,181'', arrosage interne pour le surfaçage, la copie, le fraisage d'épaulements profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée avec une profondeur de coupe maximale de 0,039''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)075E3R118M10-ISBN10-C
Product Number7477732
Product FamilyISBN10

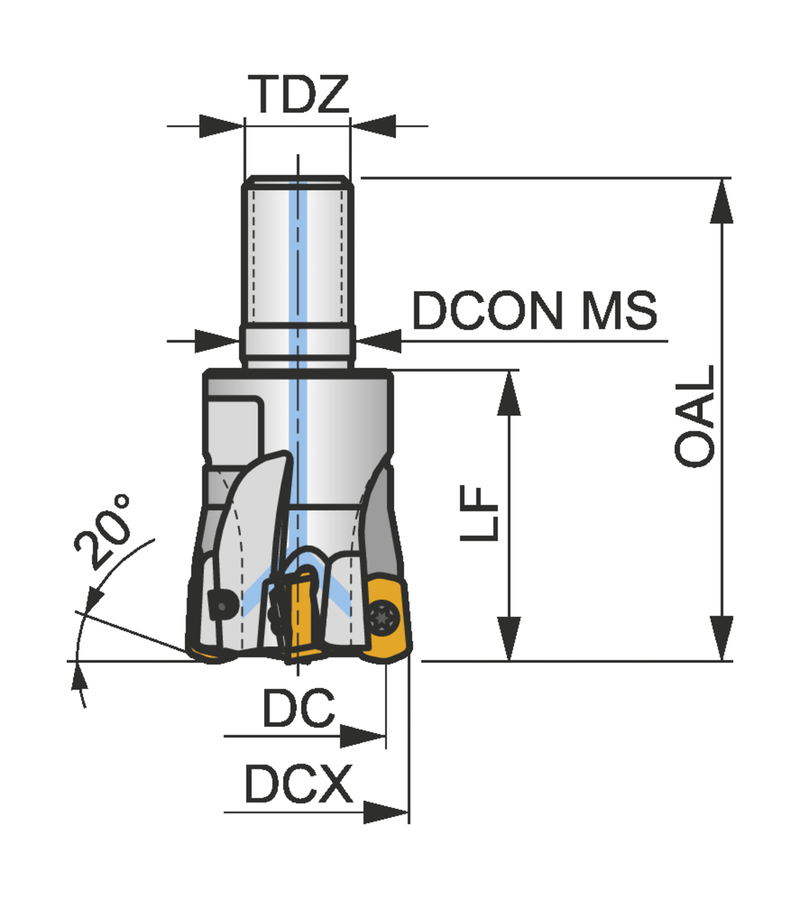

Dimensions
Cutting Diameter — in (DC)0.49"
Cutting Diameter — mm (DC)12.4 mm
Overall Length — in (OAL)1.929"
Overall Length — mm (OAL)49.0 mm
Functional Length — in (LF)1.181"
Functional Length — mm (LF)30.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSBN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7477732
EAN3603603415034
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Déconseillé
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Usage principal
File Type Download
075E3R118M10-ISBN10-C — 3D Model STP Download
075E3R118M10-ISBN10-C — 2D Model DXF Download
075E3R118M10-ISBN10-C — Line Drawing PDF Download
