200A05R-IS45OD05-C
200A05R-IS45OD05-C
200A05R-IS45OD05-C

200A05R-IS45OD05-C

UGC DOR7546798
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$716.00 CAD - $716.00 CAD
$716.00 CAD
$716.00 CAD - $716.00 CAD
$716.00 CAD

Vendu en lots de : 1

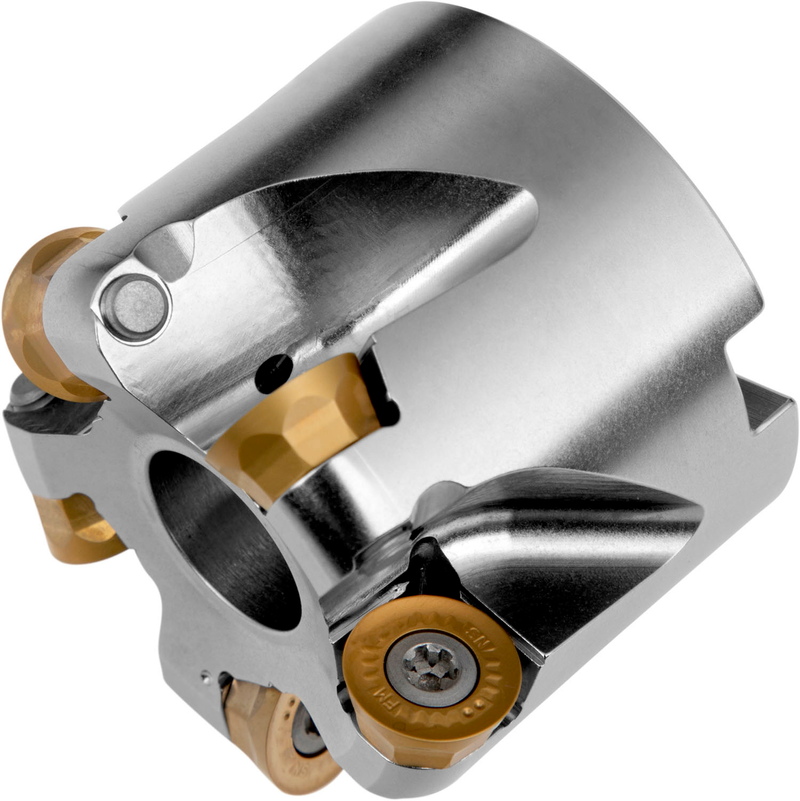

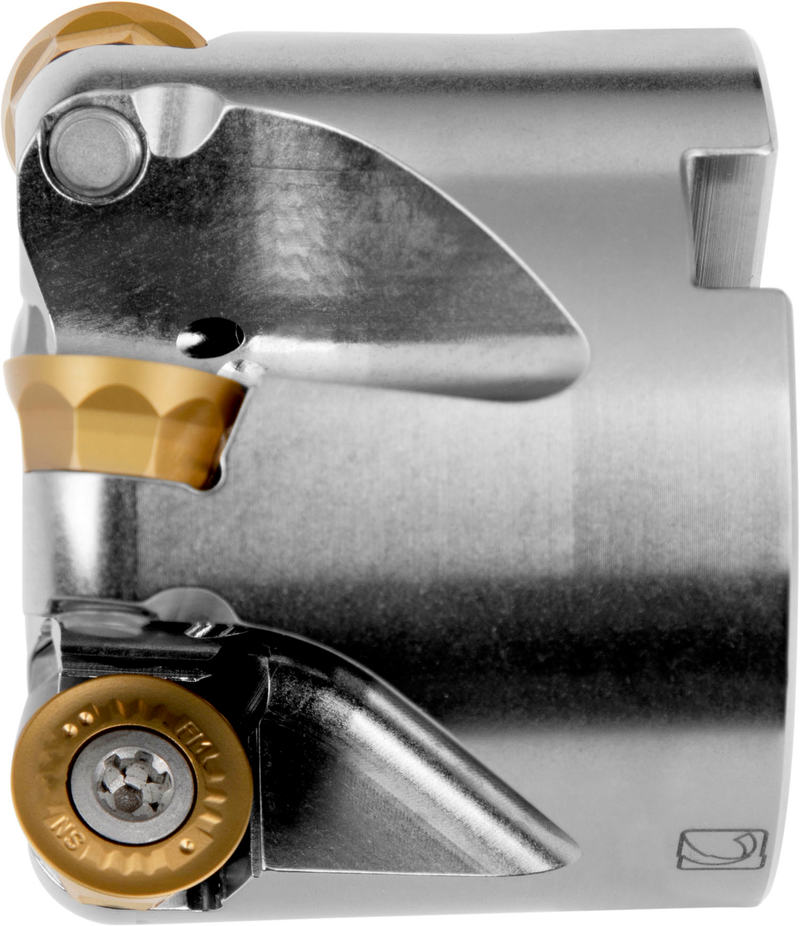

Fraise à copier avec géométrie positive/négative utilisant 5 plaquettes simple-face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe de 1.709 à 2.000'' maximum avec un angle d'attaque de 45 / 90° et un alésage de connexion de .750'' selon DIN 8030-A, longueur de saillie de 1.575'', arrosage interne pour le surfaçage, le copiage, le fraisage d'épaulement peu profond, le fraisage de rainure peu profonde, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de .118 (.236/.394)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200A05R-IS45OD05-C
Product Number7546798
Product FamilyISOD05

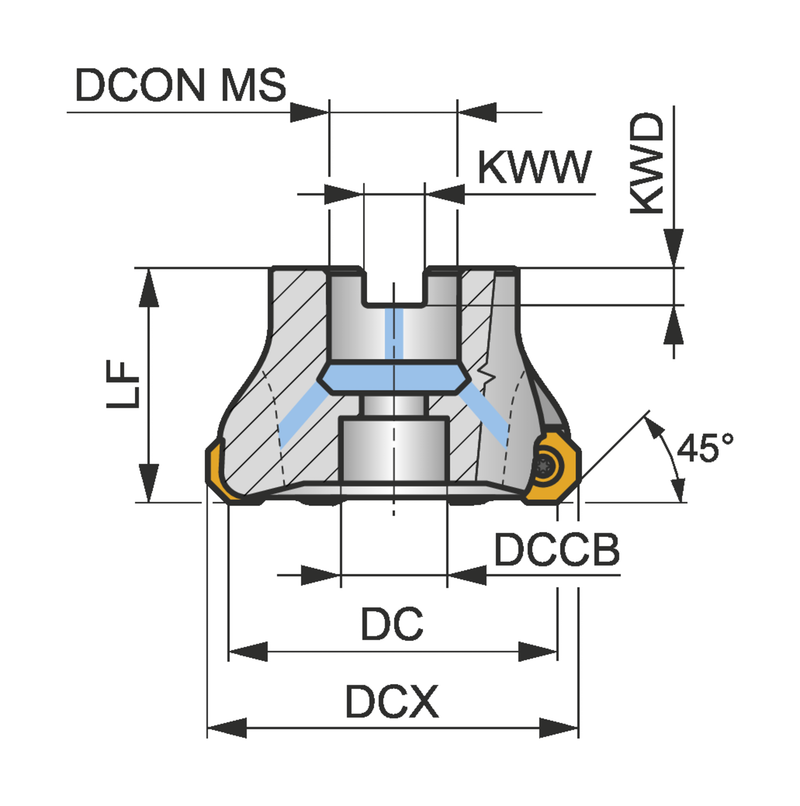

Dimensions
Cutting Diameter — in (DC)1.709"
Cutting Diameter — mm (DC)43.4 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSOD05
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7546798
EAN3603603488021
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
200A05R-IS45OD05-C — 3D Model STP Download
200A05R-IS45OD05-C — 2D Model DXF Download
200A05R-IS45OD05-C — Line Drawing PDF Download
