250A06R-IS45OD05-C
250A06R-IS45OD05-C
250A06R-IS45OD05-C

250A06R-IS45OD05-C

UGC DOR7546850
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$877.00 CAD - $877.00 CAD
$877.00 CAD
$877.00 CAD - $877.00 CAD
$877.00 CAD

Vendu en lots de : 1

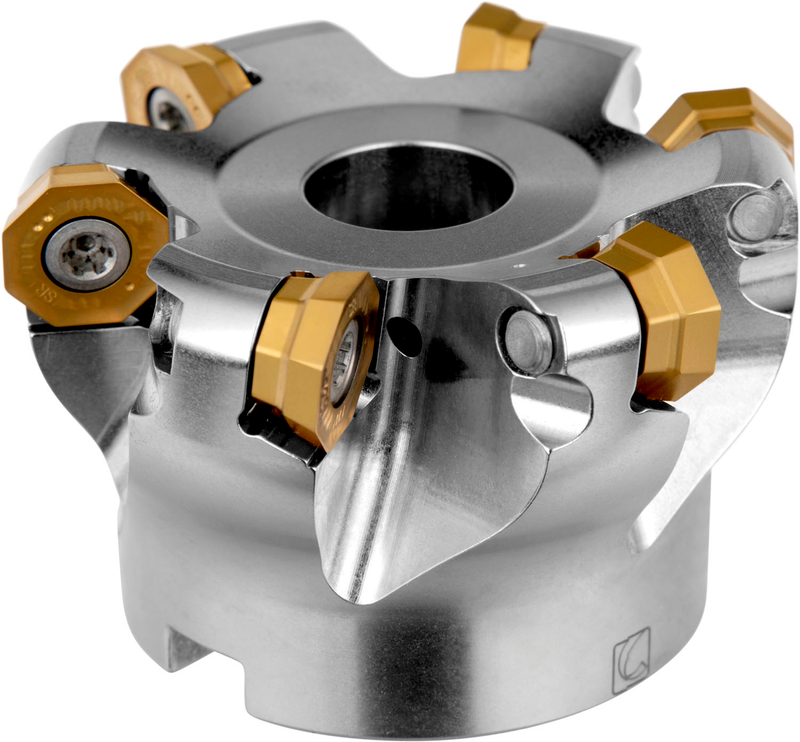

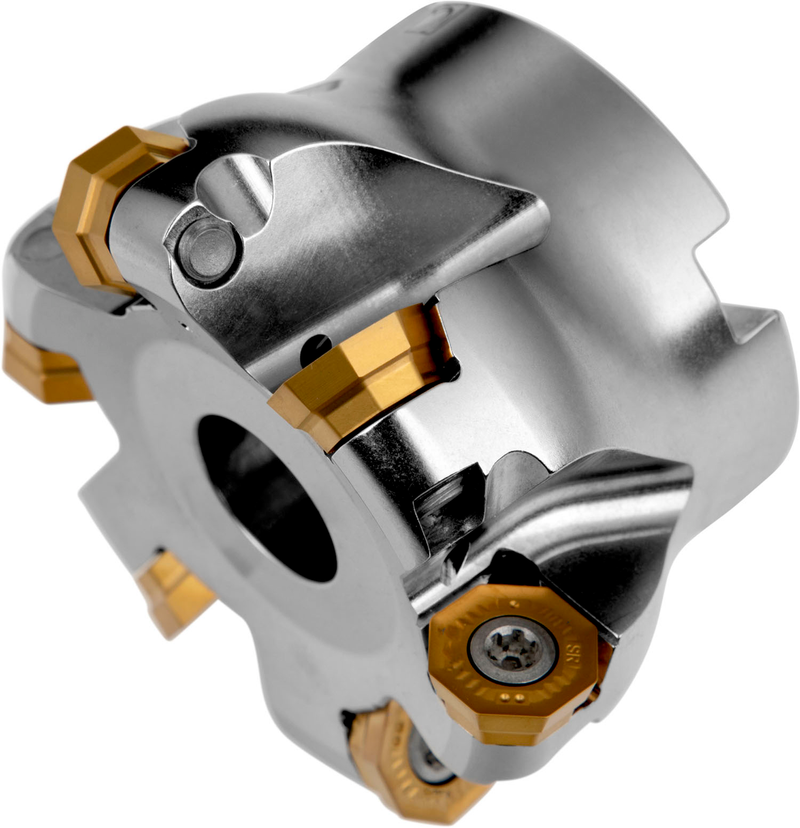

Fraise à copier avec géométrie positive/négative qui utilise 6 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe de 2,209 à 2,500" maximum avec un angle d'attaque de 45 / 90° et un alésage de raccordement de 0,750" selon DIN 8030-A, une longueur de protrusion de 1,575", arrosage par l'intérieur et pas différentiel pour le surfaçage, le copiage, le fraisage d'épaulement peu profond, le fraisage de fente peu profond, le ramping, le fraisage hélicoïdal, le fraisage en plongée, le fraisage progressif en plongée et le chanfreinage avec une profondeur de coupe maximale de 0,118 (0,236/0,394)"

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A06R-IS45OD05-C
Product Number7546850
Product FamilyISOD05

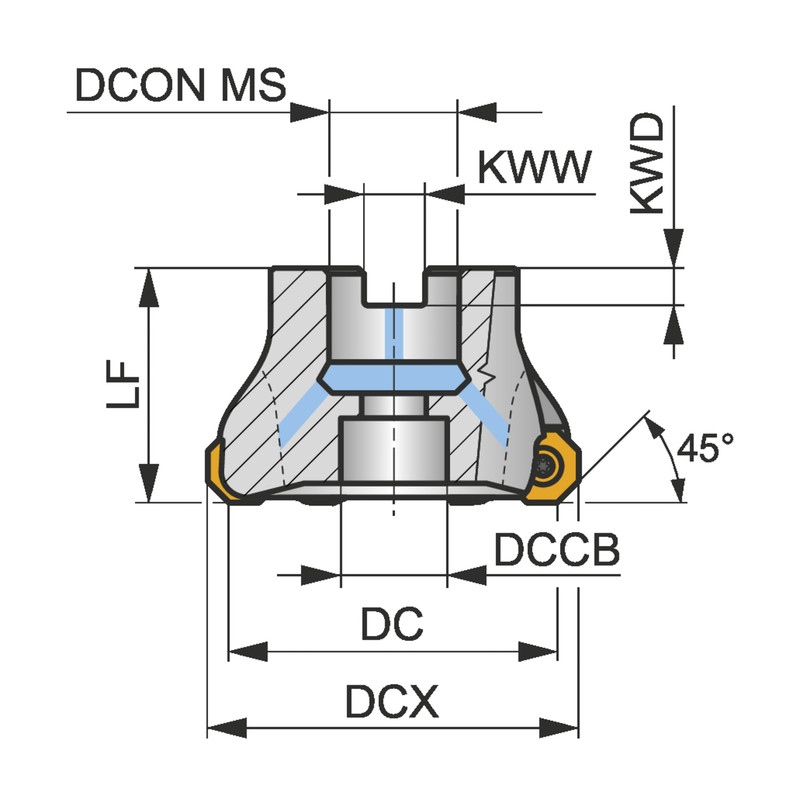

Dimensions
Cutting Diameter — in (DC)2.209"
Cutting Diameter — mm (DC)56.1 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSOD05
ShankFraise hémisphérique DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7546850
EAN3603603488045
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
250A06R-IS45OD05-C — 3D Model STP Download
250A06R-IS45OD05-C — 2D Model DXF Download
250A06R-IS45OD05-C — Line Drawing PDF Download
