150N3R177C125-ISOD05-C
150N3R177C125-ISOD05-C
150N3R177C125-ISOD05-C

150N3R177C125-ISOD05-C

UGC DOR7546856
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$685.00 CAD - $685.00 CAD
$685.00 CAD
$685.00 CAD - $685.00 CAD
$685.00 CAD

Vendu en lots de : 1

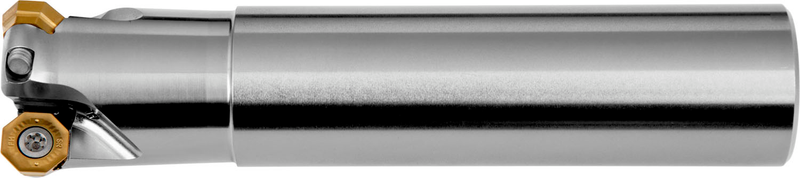

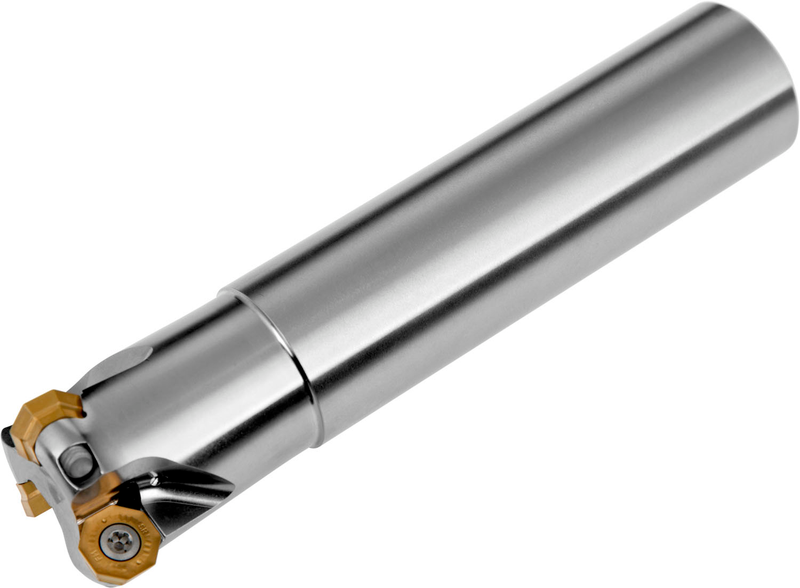

Fraise à copier avec géométrie positive/négative utilisant 3 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe de 1.209 à 1.500'' maximum avec un angle d'attaque de 45 / 90° et une queue cylindrique de 1.250'' selon DIN 1835A, longueur fonctionnelle de 1.772'' et longueur totale de 6.000'', arrosage interne pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée, le fraisage progressif en plongée et le chanfreinage avec une profondeur de coupe maximale de .118 (.236/.394)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)150N3R177C125-ISOD05-C
Product Number7546856
Product FamilyISOD05

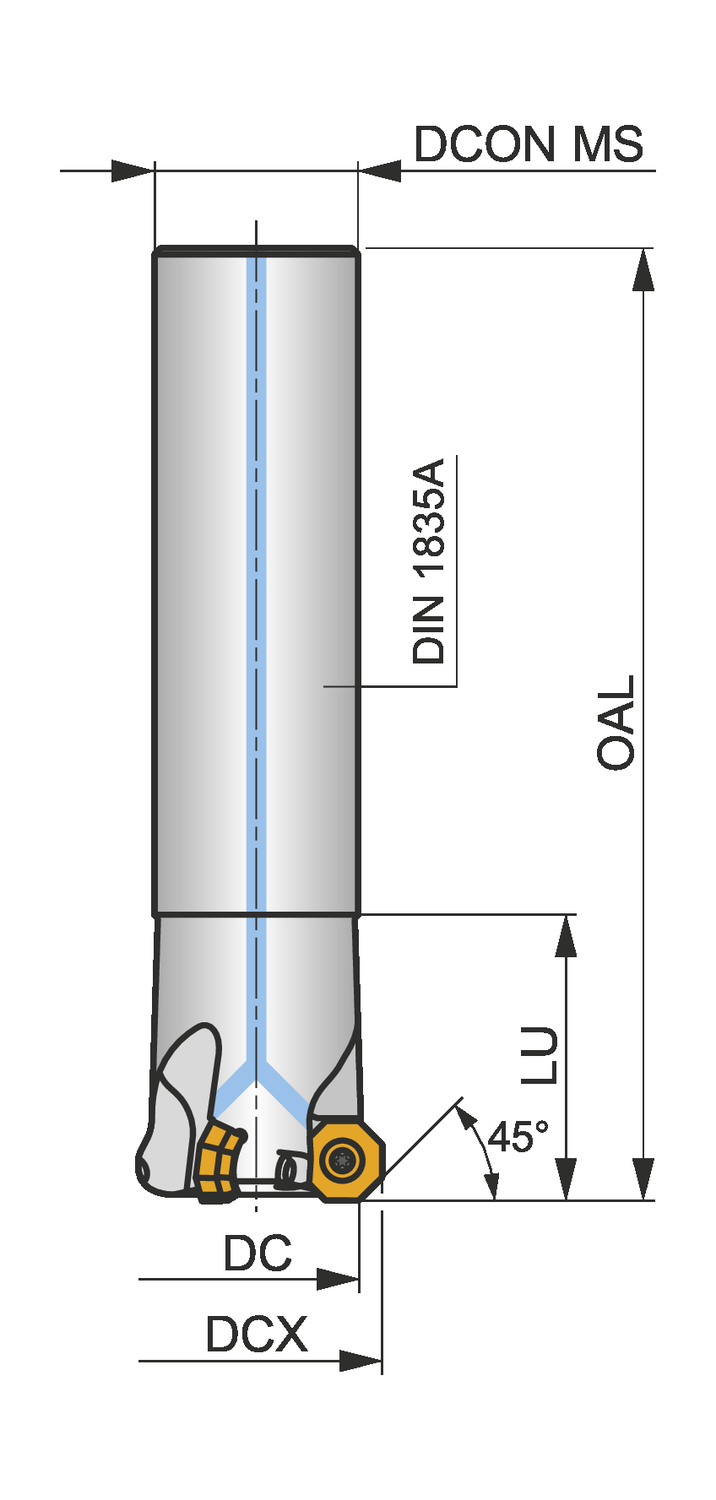

Dimensions
Cutting Diameter — in (DC)1.209"
Cutting Diameter — mm (DC)30.7 mm
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.0 mm
Usable Length — in (LU)1.772"
Usable Length — mm (LU)45.01 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.8 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSOD05
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7546856
EAN3603603488106
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Déconseillé
File Type Download
150N3R177C125-ISOD05-C — 3D Model STP Download
150N3R177C125-ISOD05-C — 2D Model DXF Download
150N3R177C125-ISOD05-C — Line Drawing PDF Download
