TN 16NRAG55:T8010
TN 16NRAG55:T8010

TN 16NRAG55:T8010

UGC DOR7575318
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.96 CAD - $29.96 CAD
$29.96 CAD
$29.96 CAD - $29.96 CAD
$29.96 CAD

Vendu en lots de : 5

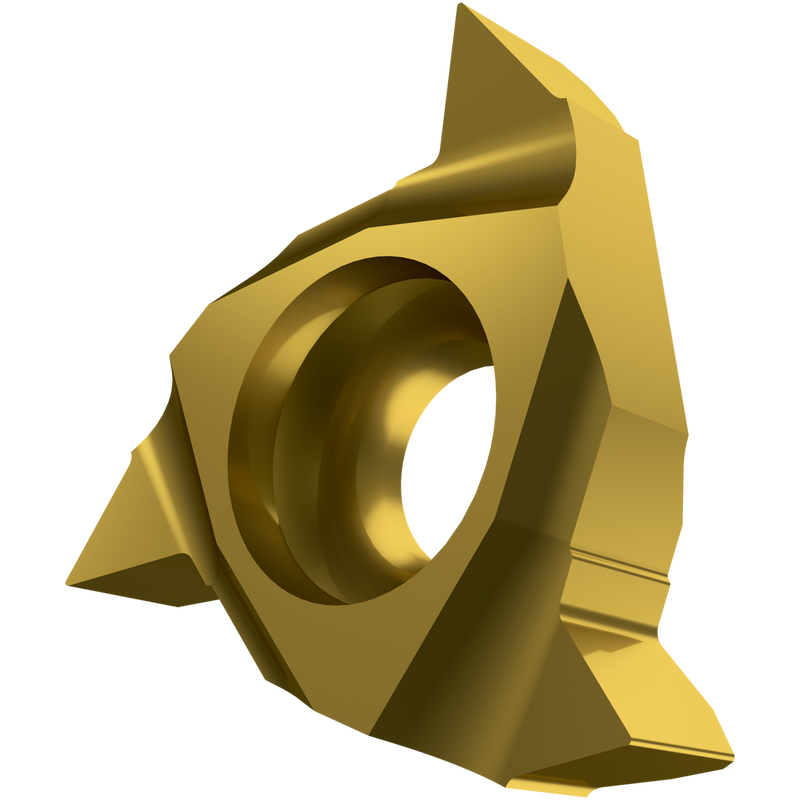

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,375", pour le filetage partiel à droite des filetages internes aux normes britanniques avec 48 à 8 filets par pouce, en carbure WC-Co à grains extra-fins revêtus PVD T8010 dans les plages de grades ISO P05-P15/M01-M15 et K05-K15 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16NRAG55:T8010
GradeT8010
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7575318
Product FamilyTN 55° PP INT

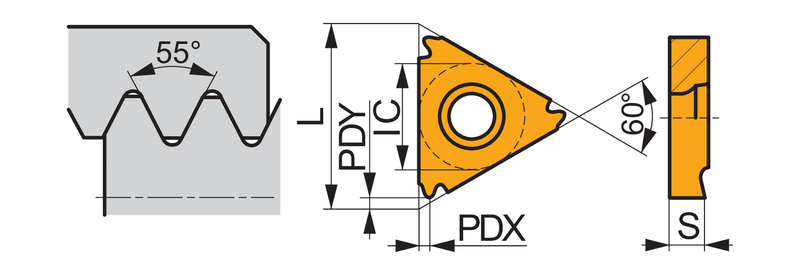

Insert Geometry
Insert DesignTN 55° PP INT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Tool Information
Reference Numbers
EDP Number7575318
EAN3603603496347
File Type Download
TN 16NRAG55:T8010 — Line Drawing PDF Download
