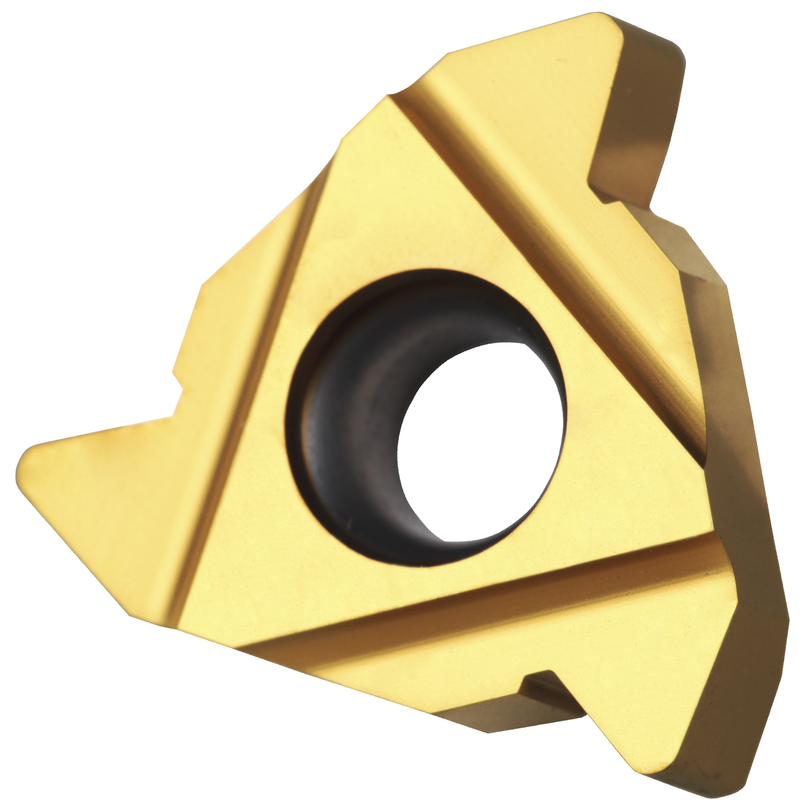

TN 22ER400M:T8010
TN 22ER400M:T8010

TN 22ER400M:T8010

UGC DOR7575388
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.14 CAD - $47.14 CAD
$47.14 CAD
$47.14 CAD - $47.14 CAD
$47.14 CAD

Vendu en lots de : 5

Insert de filetage simple face, triangulaire avec un diamètre de cercle inscrit de 0,500", pour le filetage externe ISO-métrique à droite avec un pas de 4", en carbure WC-Co à grain extra fin revêtu PVD T8010 dans les plages de grades ISO P05-P15/M01-M15 et K05-K15 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 22ER400M:T8010
GradeT8010
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7575388
Product FamilyTN M EXT

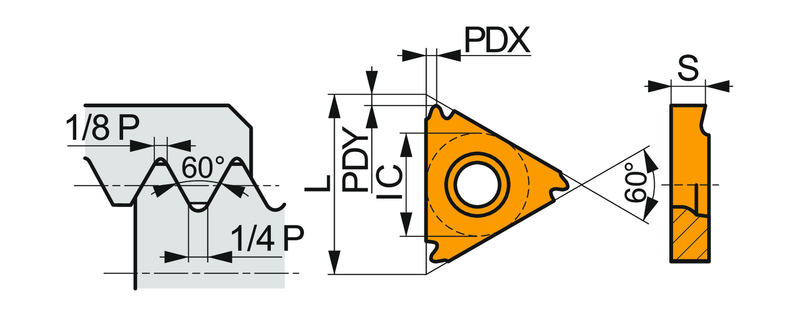

Insert Geometry
Insert DesignTN M EXT
Insert Shape Code (SC)T - triangulaire 60° angle inclus
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.185"
Insert Thickness — mm (S)4.71 mm
Threading
Thread Pitch — mm (TP)4.0 mm
Thread Pitch — in (TP)0.157"
Tool Information
Reference Numbers
EDP Number7575388
EAN3603603496644
File Type Download
TN 22ER400M:T8010 — Line Drawing PDF Download
