TN 11NR075M:T8010
TN 11NR075M:T8010

TN 11NR075M:T8010

UGC DOR7575394
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.57 CAD - $29.57 CAD
$29.57 CAD
$29.57 CAD - $29.57 CAD
$29.57 CAD

Vendu en lots de : 5

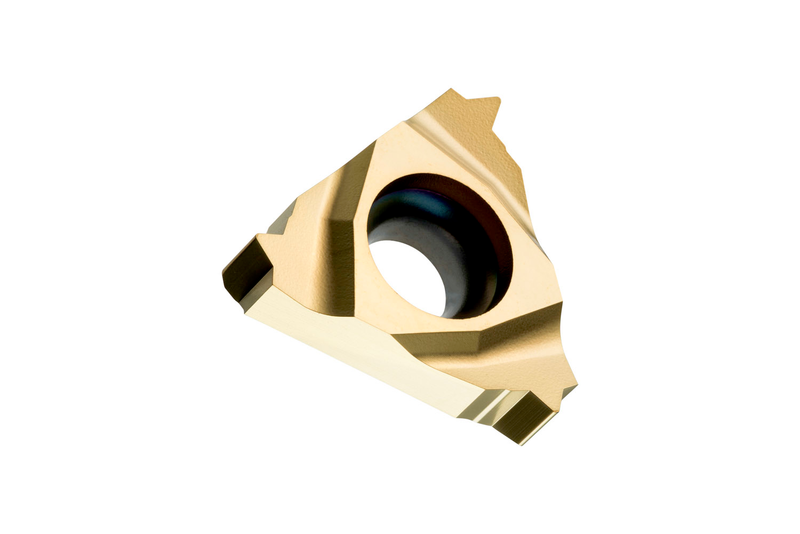

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,250 po, pour le filetage intérieur ISO-métrique à droite avec un pas de 0,75 po, en carbure WC-Co à grains extra-fins revêtement PVD T8010 dans les gammes de nuances ISO P05-P15/M01-M15 et K05-K15 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 11NR075M:T8010
GradeT8010
Chipbreaker (CBMD)Pas de brise-copeaux
Product Number7575394
Product FamilyTN M INT

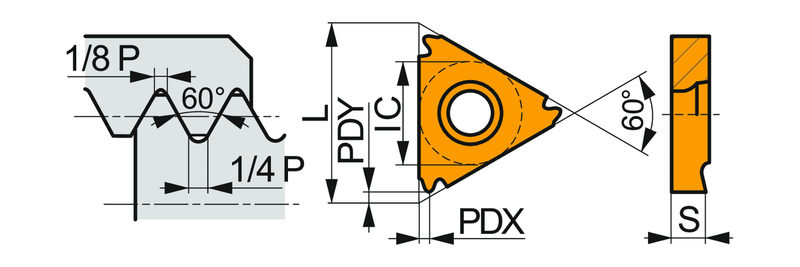

Insert Geometry
Insert DesignTN M INT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Threading
Thread Pitch — mm (TP)0.75 mm
Thread Pitch — in (TP)0.03"
Tool Information
Reference Numbers
EDP Number7575394
EAN3603603496705
File Type Download
TN 11NR075M:T8010 — Line Drawing PDF Download
