TN 16NR100M:T8010
TN 16NR100M:T8010

TN 16NR100M:T8010

UGC DOR7575408
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.96 CAD - $29.96 CAD
$29.96 CAD
$29.96 CAD - $29.96 CAD
$29.96 CAD

Vendu en lots de : 5

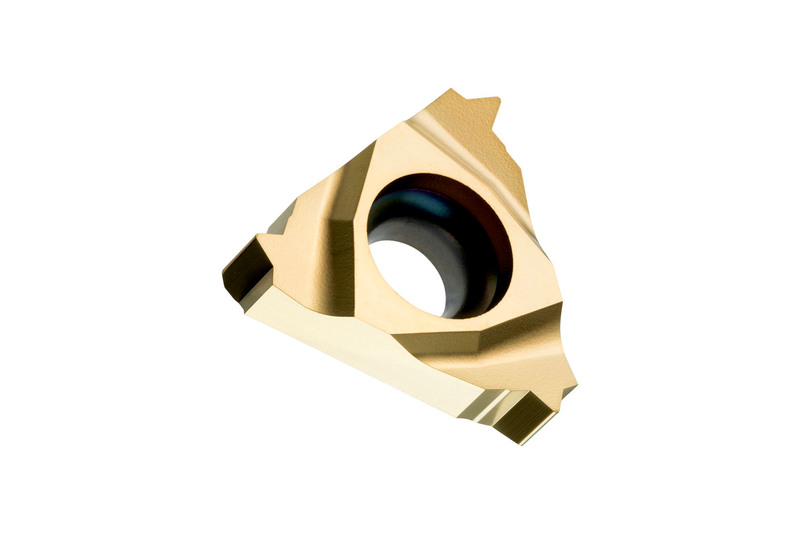

Insert de filetage simple face, triangulaire avec un diamètre de cercle inscrit de 0,375", pour le filetage interne métrique ISO à droite avec un pas de 1", en carbure WC-Co à grains extra fins revêtu PVD T8010 dans les gammes de nuances ISO P05-P15/M01-M15 et K05-K15 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16NR100M:T8010
GradeT8010
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7575408
Product FamilyTN M INT

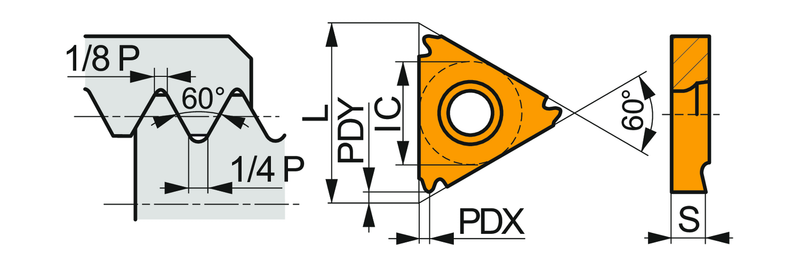

Insert Geometry
Insert DesignTN M INT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Reference Numbers
EDP Number7575408
EAN3603603496842
File Type Download
TN 16NR100M:T8010 — Line Drawing PDF Download
