TN 11NR140W:T8010
TN 11NR140W:T8010

TN 11NR140W:T8010

UGC DOR7575430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.24 CAD - $31.24 CAD
$31.24 CAD
$31.24 CAD - $31.24 CAD
$31.24 CAD

Vendu en lots de : 5

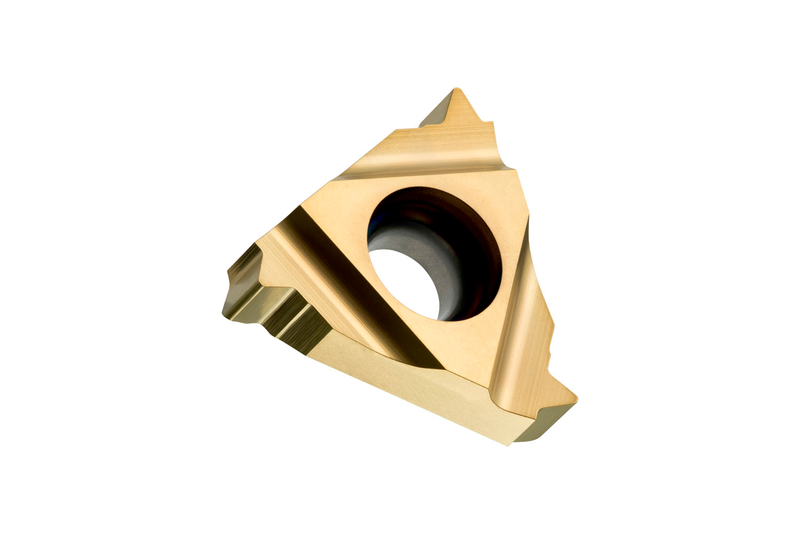

Plaquette à fileter unilatérale, triangulaire avec un diamètre de cercle inscrit de 6,35 mm (0,250"), pour le filetage intérieur droit BSW avec 14 filets par pouce, en carbure WC-Co à grains extra fins revêtu PVD nuance T8010 dans les plages de nuances ISO P05-P15/M01-M15 et K05-K15 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 11NR140W:T8010
GradeT8010
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7575430
Product FamilyTN W INT

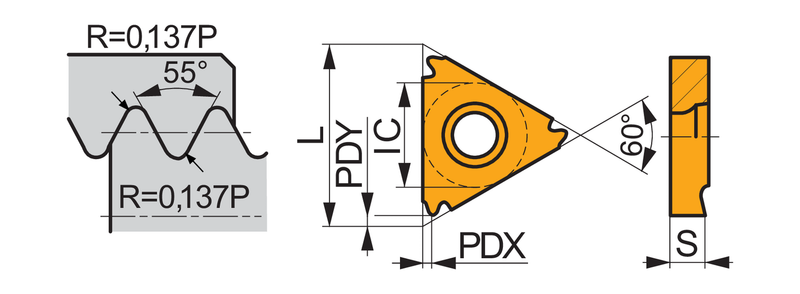

Insert Geometry
Insert DesignTN W INT
Insert Shape Code (SC)T - angle d'inclinaison triangulaire de 60°
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.118"
Insert Thickness — mm (S)3.0 mm
Threading
Threads per Inch (TPI)14.0
Tool Information
Reference Numbers
EDP Number7575430
EAN3603603500068
File Type Download
TN 11NR140W:T8010 — Line Drawing PDF Download
