TN 16NR190O:T8010
TN 16NR190O:T8010

TN 16NR190O:T8010

UGC DOR7575434
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.80 CAD - $31.80 CAD
$31.80 CAD
$31.80 CAD - $31.80 CAD
$31.80 CAD

Vendu en lots de : 5

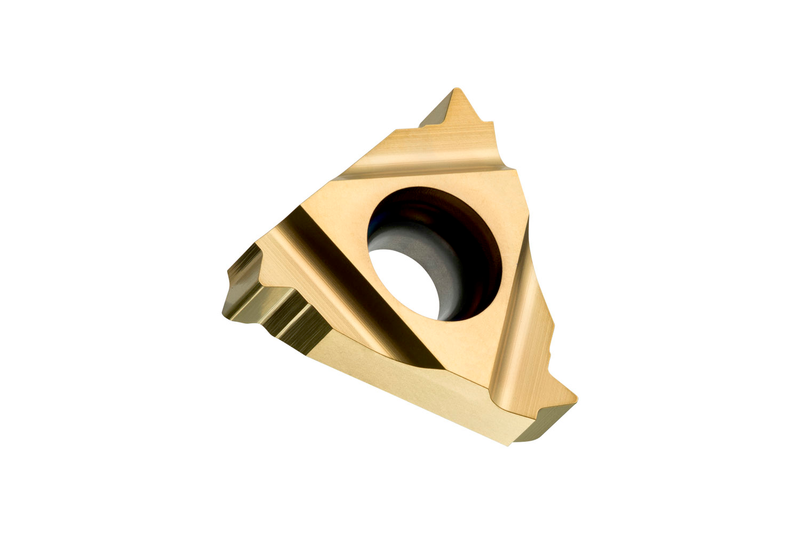

Plaquette de filetage unilatérale, triangulaire avec un diamètre de cercle inscrit de 0,375", pour le filetage intérieur BSW à droite de 19 filets par pouce, en carbure WC-Co à grain extra-fin revêtu PVD T8010, dans les plages de nuances ISO P05-P15/M01-M15 et K05-K15 pour l'usinage de l'acier, de l'acier inoxydable et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)TN 16NR190W:T8010
GradeT8010
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7575434
Product FamilyTN W INT
Insert Geometry
Insert DesignTN W INT
Insert Shape Code (SC)T - angulaire, angle d'ouverture 60°
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.137"
Insert Thickness — mm (S)3.47 mm
Threading
Threads per Inch (TPI)19.0
Tool Information
Reference Numbers
EDP Number7575434
EAN3603603500105
File Type Download

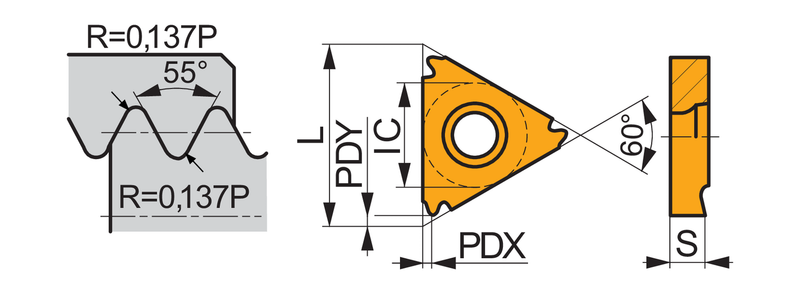

TN 16NR190O:T8010 — Line Drawing PDF Download
