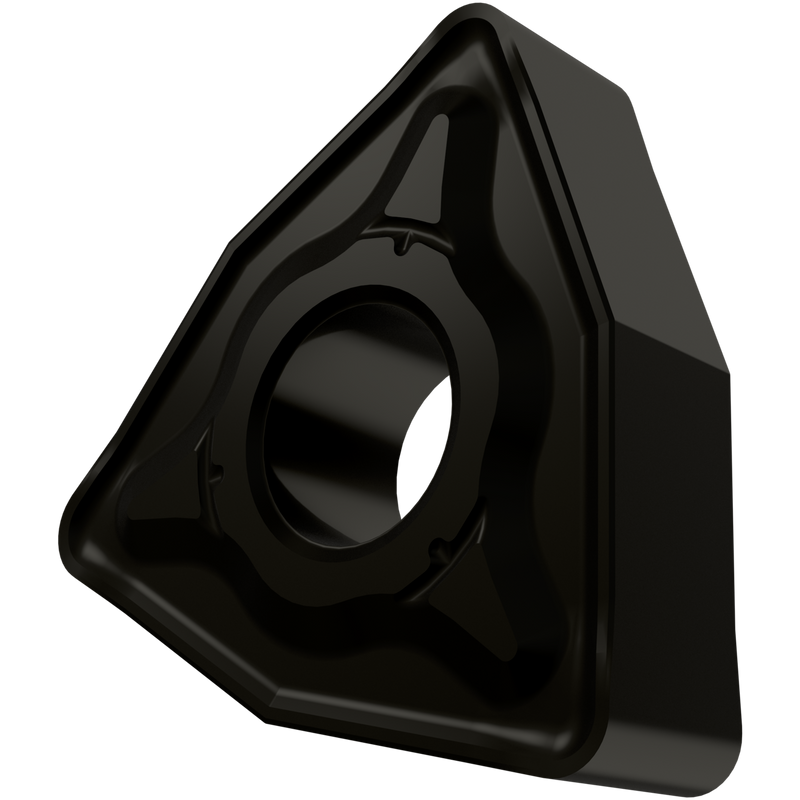

WNMG 433-NRM:T7325
WNMG 433-NRM:T7325

WNMG 433-NRM:T7325

UGC DOR7595943
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.90 CAD - $13.90 CAD
$13.90 CAD
$13.90 CAD - $13.90 CAD
$13.90 CAD

Vendu en lots de : 10

Plaquette de tournage négative double-face, trigon 80° avec diamètre du cercle inscrit de 12,7 mm, épaisseur de 4,76 mm, rayon de bec de 1,2 mm et précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux NRM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour l'usinage moyen à lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)WNMG 433-NRM:T7325
Product Name (ISO)WNMG 080412-NRM:T7325
GradeT7325
Chipbreaker (CBMD)NRM
Product Number7595943
Product FamilyWNMG
Insert Geometry
Insert DesignWNMG
Insert Shape Code (SC)W - trigonale
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.047"
Corner Radius — mm (RE)1.2 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7595943
EAN3603603511194
File Type Download
WNMG 433-NRM:T7325 — Line Drawing PDF Download
