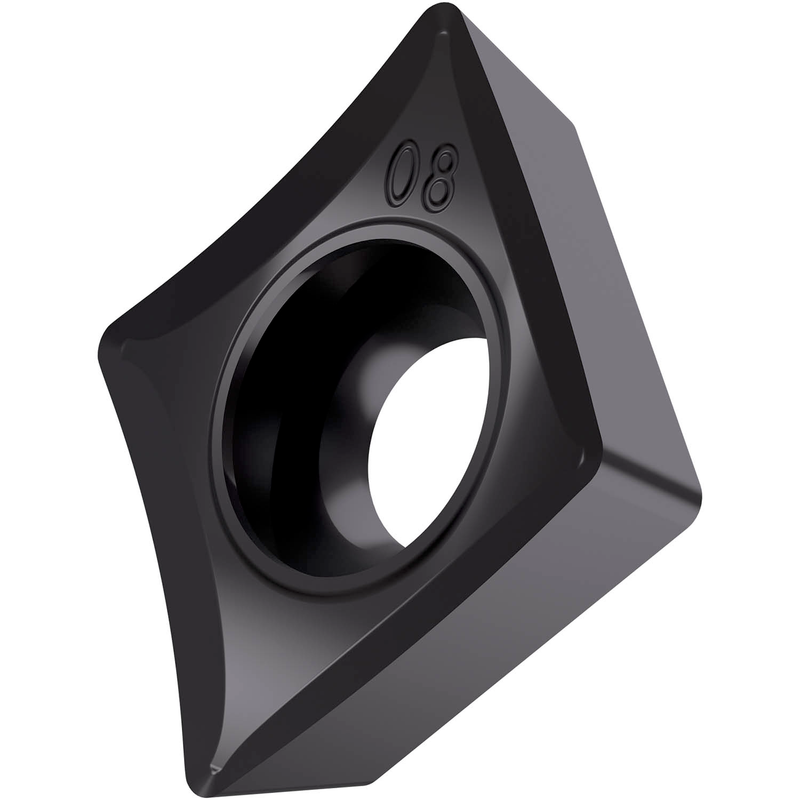

CCGT 431-SF3:T6310
CCGT 431-SF3:T6310

CCGT 431-SF3:T6310

UGC DOR7600314
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.07 CAD - $25.07 CAD
$25.07 CAD
$25.07 CAD - $25.07 CAD
$25.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 12,7 mm, épaisseur 4,76 mm, rayon de bec 0,4 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 431-SF3:T6310
Product Name (ISO)CCGT 120404E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600314
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.01 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7600314
EAN3603603519046
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
M — Stainless Steel Usage principal
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CCGT 431-SF3:T6310 — Line Drawing PDF Download
