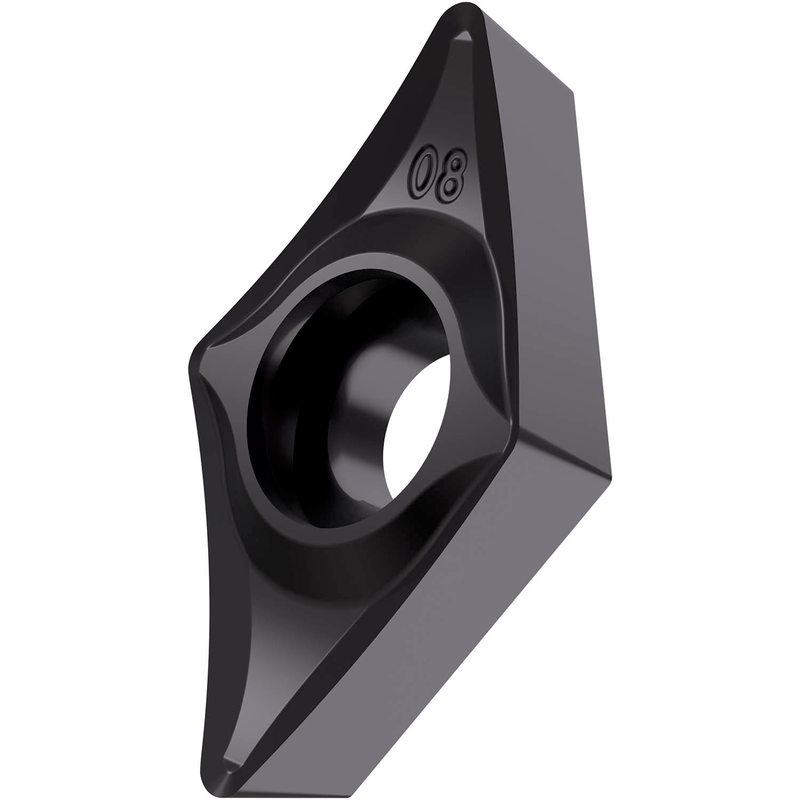

DCGT 21.50.2-SF3:T6310
DCGT 21.50.2-SF3:T6310

DCGT 21.50.2-SF3:T6310

UGC DOR7600315
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.40 CAD - $18.40 CAD
$18.40 CAD
$18.40 CAD - $18.40 CAD
$18.40 CAD

Vendu en lots de : 10

Plaquette positive simple face à 55° rhomboïde avec un angle de dépouille de 7°, diamètre du cercle inscrit de 6,35mm, 2,38mm d'épaisseur, rayon de bec de 0,1mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes vives arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage de finition à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 21.50.2-SF3:T6310
Product Name (ISO)DCGT 070201E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600315
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle inclus rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.58 mm
Corner Radius — in (RE)0.004"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7600315
EAN3603603519053
File Type Download
DCGT 21.50.2-SF3:T6310 — Line Drawing PDF Download
