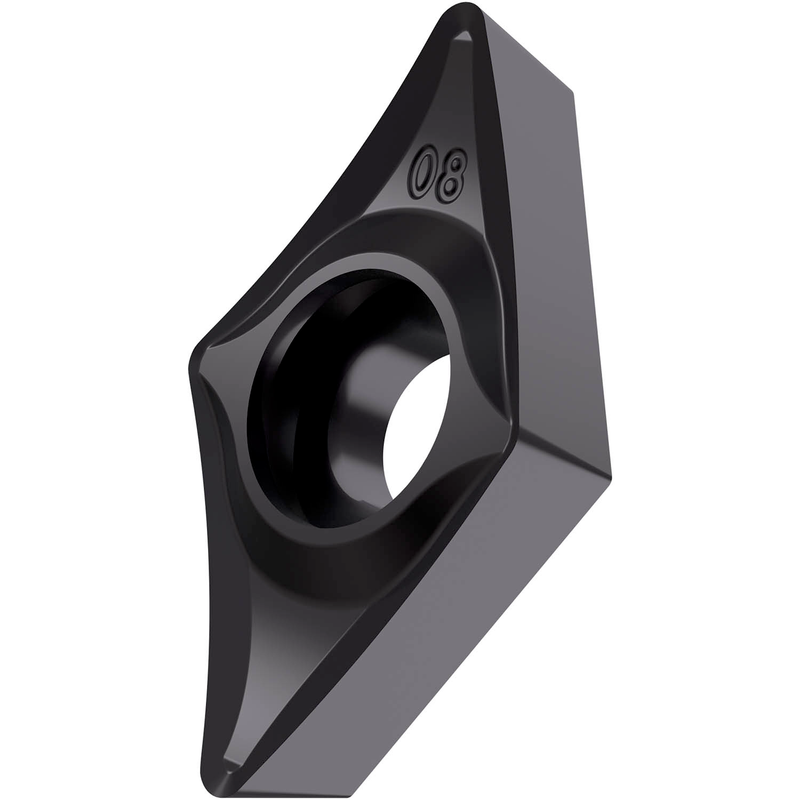

DCGT 32.50.2-SF3:T6310
DCGT 32.50.2-SF3:T6310

DCGT 32.50.2-SF3:T6310

UGC DOR7600316
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.40 CAD - $24.40 CAD
$24.40 CAD
$24.40 CAD - $24.40 CAD
$24.40 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple-face, rhomboïde 55° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 9,525mm, épaisseur de 3,97mm, rayon de bec de 0,1mm, précision d'indexation selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.50.2-SF3:T6310
Product Name (ISO)DCGT 11T301E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600316
Product FamilyDCGT
Insert Geometry
Insert DesignDDCGT
Insert Shape Code (SC)D - angle inclus de 55° rhombique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.004"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.071"
Depth of Cut Max — mm (APMX)1.8 mm
Tool Information
Reference Numbers
EDP Number7600316
EAN3603603519060
File Type Download
DCGT 32.50.2-SF3:T6310 — Line Drawing PDF Download
