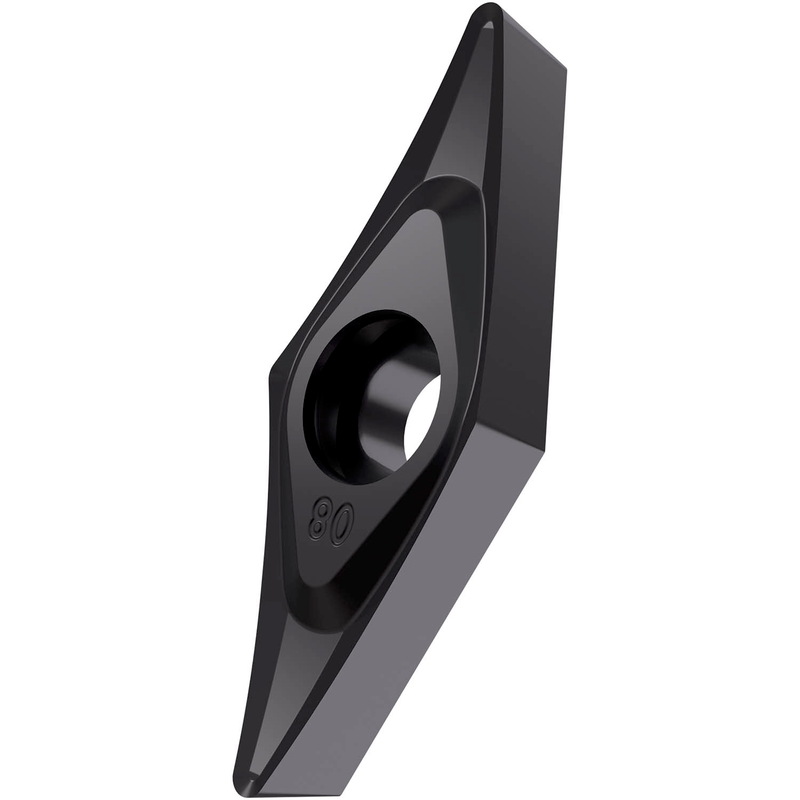

VCGT 220.2-SF3:T6310
VCGT 220.2-SF3:T6310

VCGT 220.2-SF3:T6310

UGC DOR7600319
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.07 CAD - $33.07 CAD
$33.07 CAD
$33.07 CAD - $33.07 CAD
$33.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïdale à 35° avec dépouille de 7°, diamètre du cercle inscrit de 6,35 mm, épaisseur de 3,18 mm, rayon de bec de 0,1 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 à arêtes vives arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 220.2-SF3:T6310
Product Name (ISO)VCGT 110301E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600319
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle dièdre 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.004"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7600319
EAN3603603519091
File Type Download
VCGT 220.2-SF3:T6310 — Line Drawing PDF Download
