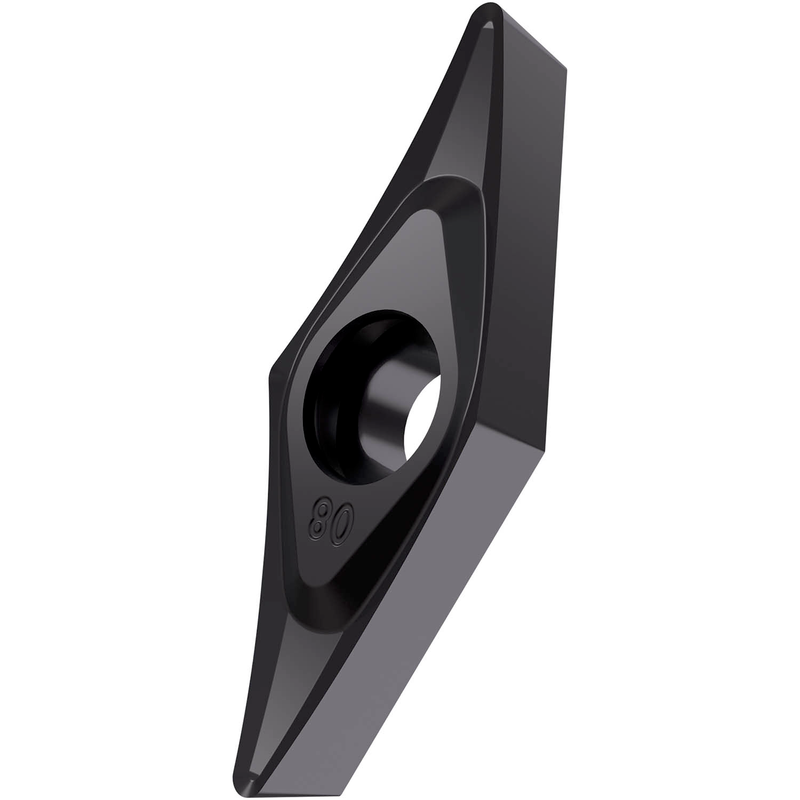

VCGT 220.5-SF3:T6310
VCGT 220.5-SF3:T6310

VCGT 220.5-SF3:T6310

UGC DOR7600320
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.07 CAD - $33.07 CAD
$33.07 CAD
$33.07 CAD - $33.07 CAD
$33.07 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 6,35mm, épaisseur 3,18mm, rayon de bec 0,2mm, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et des super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 220.5-SF3:T6310
Product Name (ISO)VCGT 110302E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600320
Product FamilyVCGT
Insert Geometry
Insert DesignVÉCG
Insert Shape Code (SC)V - rhombique angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7600320
EAN3603603519107
File Type Download
VCGT 220.5-SF3:T6310 — Line Drawing PDF Download
