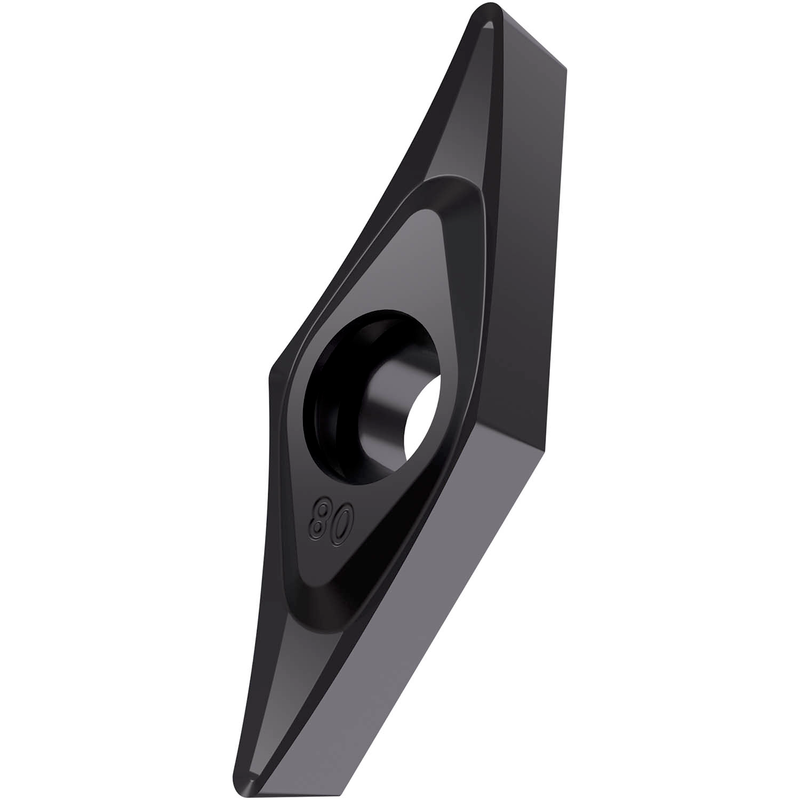

VCGT 221-SF3:T6310
VCGT 221-SF3:T6310

VCGT 221-SF3:T6310

UGC DOR7600321
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.43 CAD - $31.43 CAD
$31.43 CAD
$31.43 CAD - $31.43 CAD
$31.43 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 6,35mm, épaisseur 3,18mm, rayon de bec 0,4mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3 avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 221-SF3:T6310
Product Name (ISO)VCGT 110304E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600321
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'inclinaison de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7600321
EAN3603603519114
File Type Download
VCGT 221-SF3:T6310 — Line Drawing PDF Download
