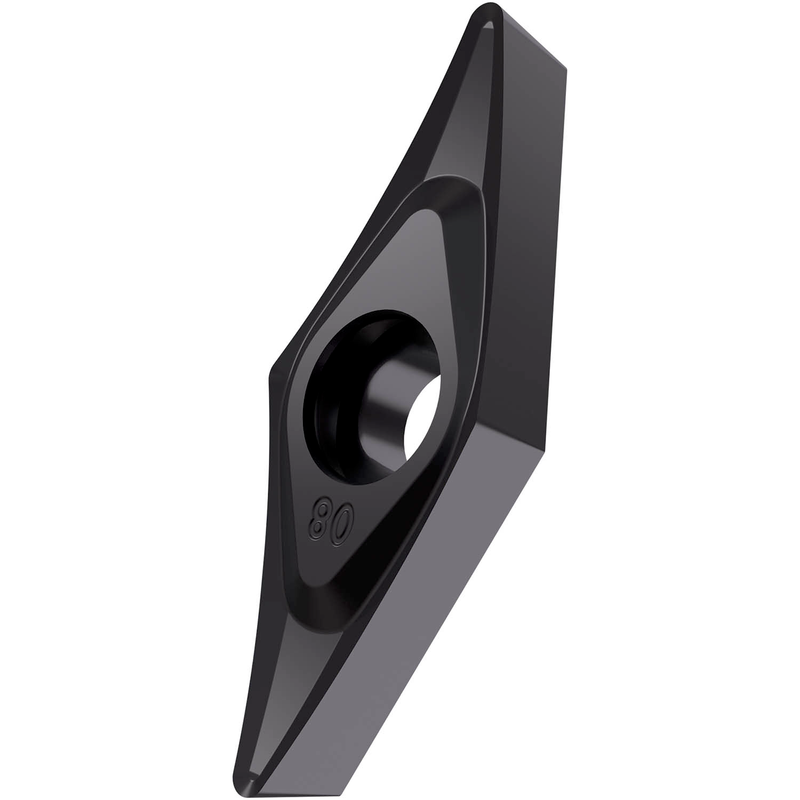

VCGT 330.5-SF3:T6310
VCGT 330.5-SF3:T6310

VCGT 330.5-SF3:T6310

UGC DOR7600322
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.86 CAD - $34.86 CAD
$34.86 CAD
$34.86 CAD - $34.86 CAD
$34.86 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 9,525mm, 4,76mm d'épaisseur, rayon de bec de 0,2mm, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3 à arêtes vives arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 330.5-SF3:T6310
Product Name (ISO)VCGT 160402E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7600322
Product FamilyVCGT
Insert Geometry
Insert DesignTVCG
Insert Shape Code (SC)V - angle d'ouverture 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.197"
Insert Thickness — mm (S)5.01 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7600322
EAN3603603519121
File Type Download
VCGT 330.5-SF3:T6310 — Line Drawing PDF Download
