BNGX 10T308SR-M:M6330
BNGX 10T308SR-M:M6330

BNGX 10T308SR-M:M6330

UGC DOR7601335
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.74 CAD - $23.74 CAD
$23.74 CAD
$23.74 CAD - $23.74 CAD
$23.74 CAD

Vendu en lots de : 10

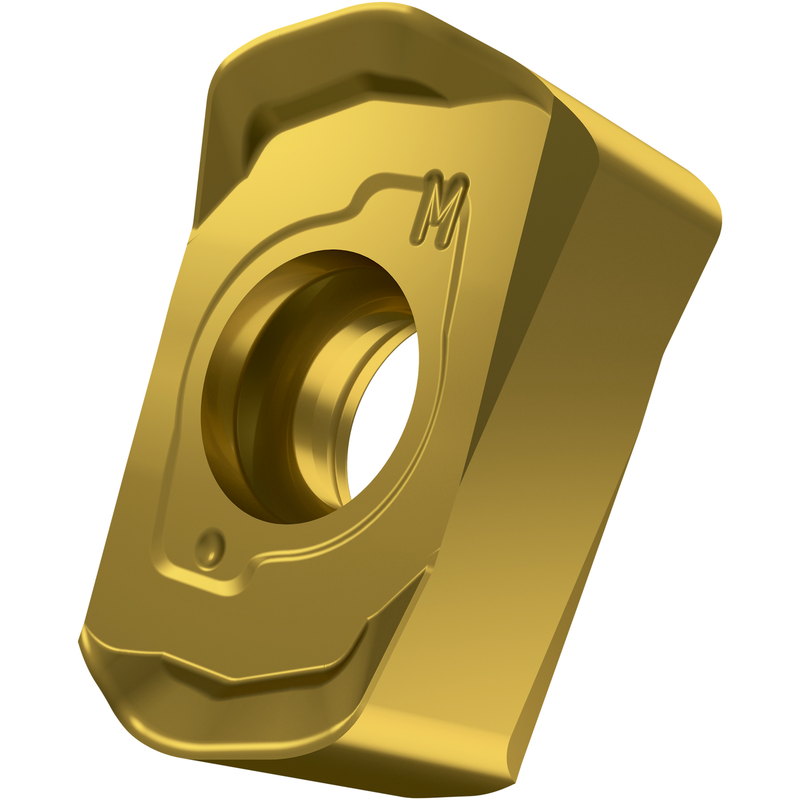

Plaquette de fraisage double face BNGX 10T3, parallélogramme 82° et conception à avance rapide pour une profondeur de coupe maximale de 1 mm, avec rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co revêtu PVD M6330 pour l'usinage avec des fraises à avance rapide SBN10

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)BNGX 10T308SR-M:M6330
GradeM6330
Chipbreaker (CBMD)M
Product Number7601335
Product FamilyBNGX 10

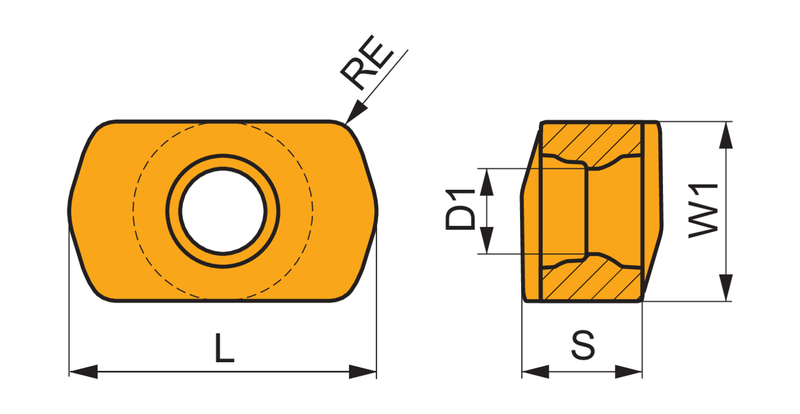

Insert Geometry
Insert DesignBNGX
Insert Shape Code (SC)B - parallélogramme angle inclus de 82°
Insert Thickness — in (S)0.154"
Insert Thickness — mm (S)3.9 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7601335
EAN3603603520141
Material Group Suitability
P — Steel and Cast Steel Usage principal
File Type Download
BNGX 10T308SR-M:M6330 — Line Drawing PDF Download
