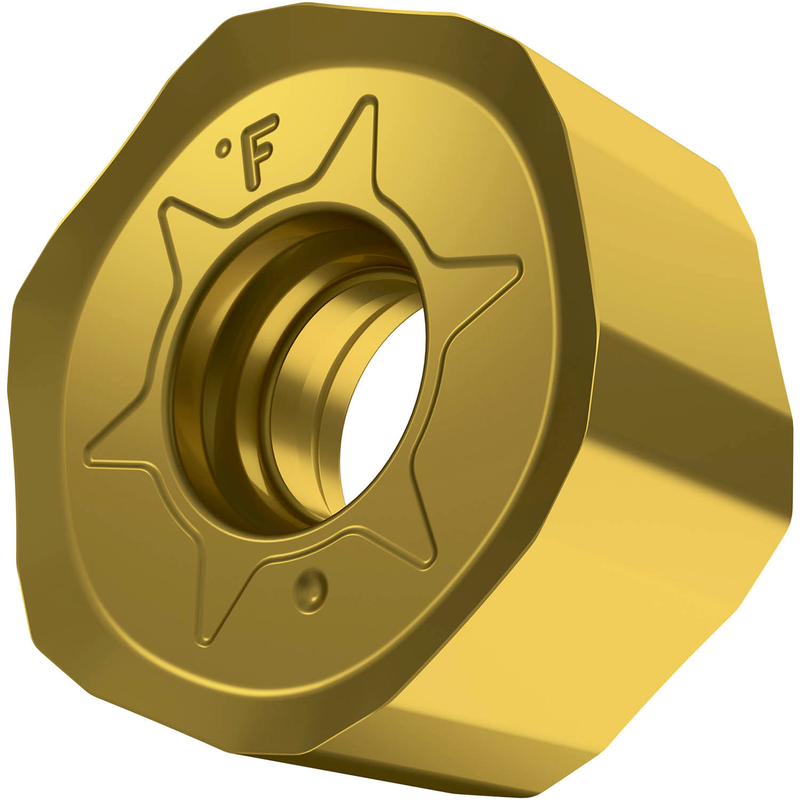

HNGX 0604ANSN-F:M6330
HNGX 0604ANSN-F:M6330

HNGX 0604ANSN-F:M6330

UGC DOR7601336
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.77 CAD - $27.77 CAD
$27.77 CAD
$27.77 CAD - $27.77 CAD
$27.77 CAD

Vendu en lots de : 10

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3 mm, avec rayon de coupe de ", précision de positionnement selon la classe de tolérance ISO-G et géométrie F avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu PVD M6330 dans la gamme de qualité ISO M20-M35 pour l'usinage d'acier inoxydable avec les fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-F:M6330
GradeM6330
Chipbreaker (CBMD)F
Product Number7601336
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonal
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7601336
EAN3603603520158
File Type Download
HNGX 0604ANSN-F:M6330 — Line Drawing PDF Download
