HNGX 0604ANSN-M:M6330
HNGX 0604ANSN-M:M6330

HNGX 0604ANSN-M:M6330

UGC DOR7601337
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.77 CAD - $27.77 CAD
$27.77 CAD
$27.77 CAD - $27.77 CAD
$27.77 CAD

Vendu en lots de : 10

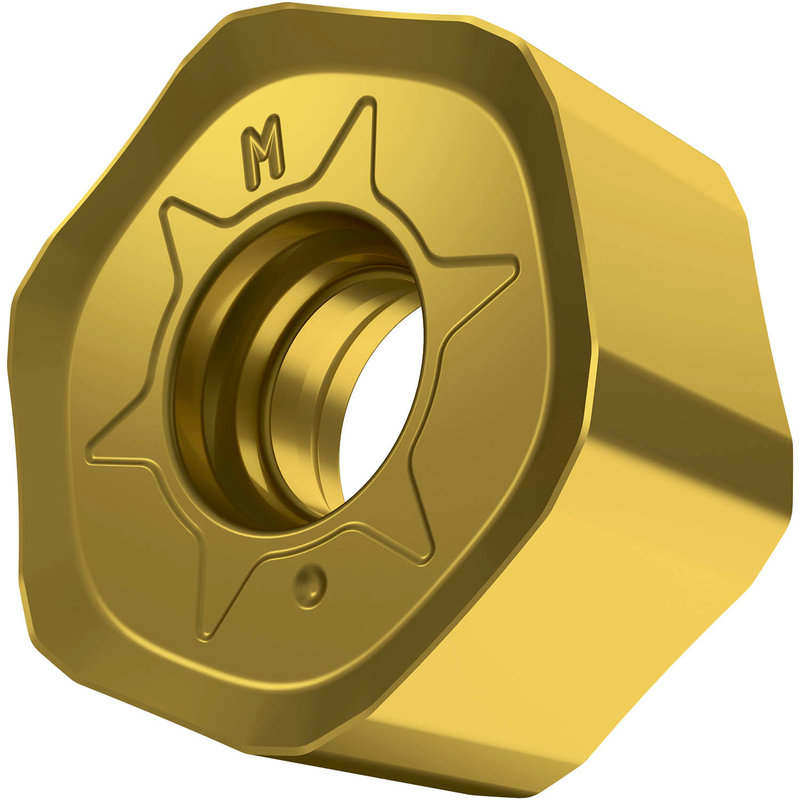

Plaquette de fraisage double face HNGX 0604, hexagonale pour une profondeur de coupe maximale de 3,0 mm, avec rayon de bec «», une précision de positionnement selon la classe de tolérance ISO-G et une géométrie M avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu PVD M6330 pour l'usinage avec les fraises à surfacer SHN06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0604ANSN-M:M6330
GradeM6330
Chipbreaker (CBMD)M
Product Number7601337
Product FamilyHNGX 06
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.413"
Inscribed Circle Dia. — mm (IC)10.5 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7601337
EAN3603603520165
File Type Download
HNGX 0604ANSN-M:M6330 — Line Drawing PDF Download
