HNGX 0906ANSN-F:M6330
HNGX 0906ANSN-F:M6330

HNGX 0906ANSN-F:M6330

UGC DOR7601338
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.63 CAD - $37.63 CAD
$37.63 CAD
$37.63 CAD - $37.63 CAD
$37.63 CAD

Vendu en lots de : 10

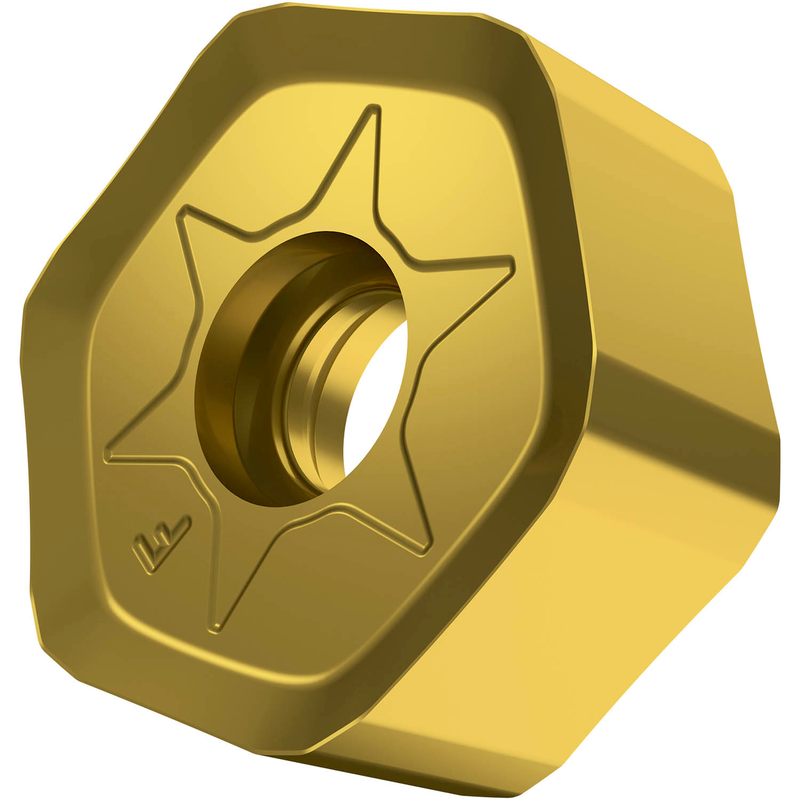

Plaquette de fraisage double face HNGX 0906, hexagonale pour une profondeur de coupe maximale de 5 mm, avec un rayon de coin ", une précision de positionnement conforme à la classe de tolérance ISO-G et une géométrie F avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu PVD M6330 de classe ISO M20-M35 pour l'usinage de l'acier inoxydable avec les fraises à surfacer SHN09C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)HNGX 0906ANSN-F:M6330
GradeM6330
Chipbreaker (CBMD)F
Product Number7601338
Product FamilyHNGX 09
Insert Geometry
Insert DesignHNGX
Insert Shape Code (SC)H - hexagonale
Inscribed Circle Dia. — in (IC)0.65"
Inscribed Circle Dia. — mm (IC)16.5 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Depth of Cut Max — in (APMX)0.197"
Depth of Cut Max — mm (APMX)5.0 mm
Tool Information
Reference Numbers
EDP Number7601338
EAN3603603520172
File Type Download
HNGX 0906ANSN-F:M6330 — Line Drawing PDF Download
