XNGX 1308DNSN:M8330
XNGX 1308DNSN:M8330

XNGX 1308DNSN:M8330

UGC DOR7606905
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.49 CAD - $62.49 CAD
$62.49 CAD
$62.49 CAD - $62.49 CAD
$62.49 CAD

Vendu en lots de : 5

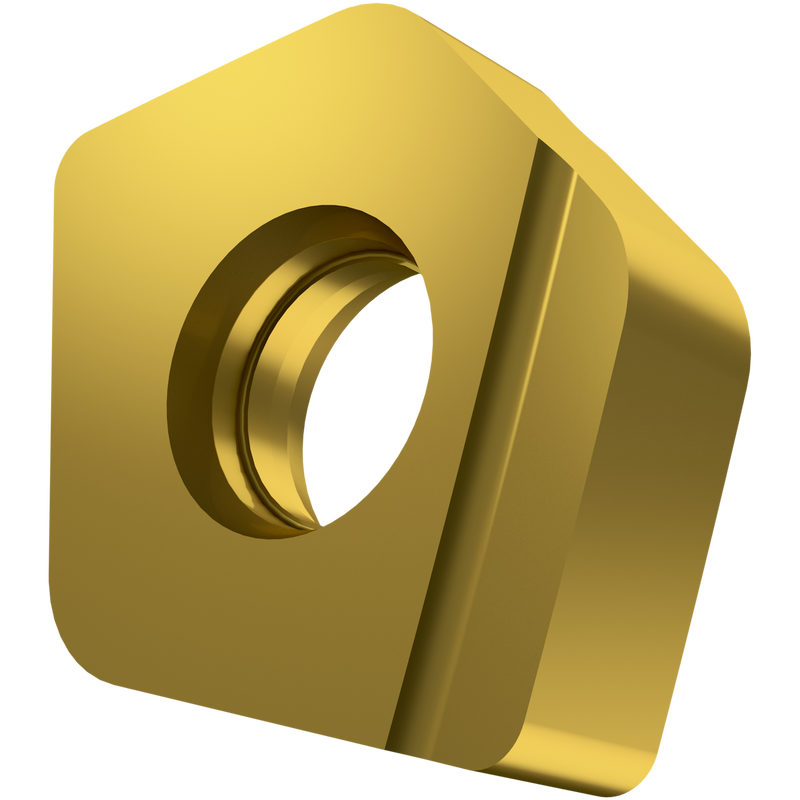

Plaquette de fraisage double face XNGX 1308, forme spéciale et design d'essuie-glace pour une profondeur de coupe maximale de 0,1378", avec rayon de coin ", une précision d'indexage selon la classe de tolérance ISO-G avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co à grains fins revêtu PVD M8330 dans les gammes de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)XNGX 1308DNSN:M8330
GradeM8330
Chipbreaker (CBMD)Plaquette d'essuyage avec brise-copeaux - sans désignation
Product Number7606905
Product FamilyXNGX 13
Insert Geometry
Insert DesignXNGX
Insert Shape Code (SC)X - Conception spéciale
Inscribed Circle Dia. — in (IC)0.952"
Inscribed Circle Dia. — mm (IC)24.18 mm
Insert Thickness — in (S)0.313"
Insert Thickness — mm (S)7.94 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7606905
EAN3603603517202
File Type Download

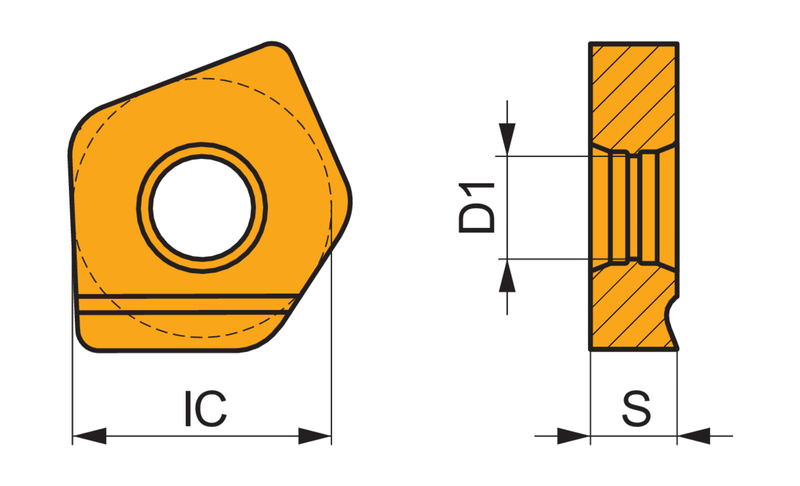

XNGX 1308DNSN:M8330 — Line Drawing PDF Download
