R46317/64
R46317/64
R46317/64

R46317/64

UGC DOR7625006
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.21 CAD - $197.21 CAD
$197.21 CAD
$197.21 CAD - $197.21 CAD
$197.21 CAD

Vendu en lots de : 1

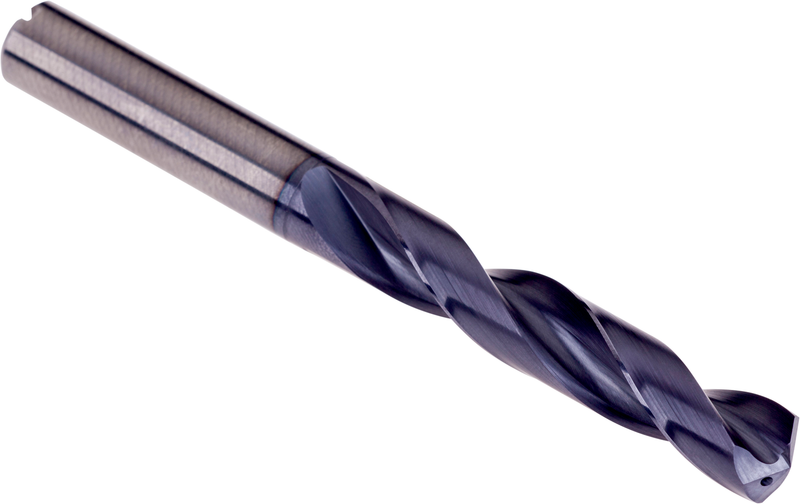

Forets hautes performances FORCE M à queue cylindrique DIN 6535HA NC, diamètre 0,2656" (17/64) avec une longueur totale de 91 mm et une longueur de coupe de 53 mm selon la norme DIN 6537 L avec pointe en croix en S à 4 facettes et angle de 140°, en carbure monobloc avec revêtement TiAlN, âme parallèle continuellement amincie et trous d'arrosage internes pour le perçage 5xD sans débourrage dans l'acier inoxydable et le superalliage

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R46317/64
GradeTiAlN
Product Number7625006
Product FamilyR463
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)3.5827"
Overall Length — mm (OAL)91.0 mm
Flute Length — in (LCF)2.0866"
Flute Length — mm (LCF)53.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7625006
EAN7320760835135
File Type Download
R46317/64 — 3D Model STP Download
R46317/64 — Line Drawing PDF Download
