UGC DOR7625034
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$238.07 CAD - $238.07 CAD
$238.07 CAD
$238.07 CAD - $238.07 CAD
$238.07 CAD

Vendu en lots de : 1

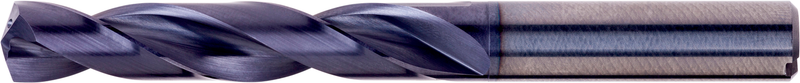

Foret haute performance FORCE M avec queue cylindrique DIN 6535HA NC, diamètre 8,9 mm, longueur totale 103 mm et longueur de goujure 61 mm selon la norme DIN 6537 L avec une pointe fendue à 4 facettes en S de 140°, en carbure monobloc avec revêtement TiAlN, âme amincie progressivement et trous d'arrosage intégrés pour un perçage jusqu'à 5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4638,9
GradeTiAlN
Product Number7625034
Product FamilyR463
Dimensions
Cutting Diameter — in (DC)0.3504"
Cutting Diameter — mm (DC)8.9 mm
Overall Length — in (OAL)4.0551"
Overall Length — mm (OAL)103.0 mm
Flute Length — in (LCF)2.4016"
Flute Length — mm (LCF)61.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7625034
EAN7320760835418
File Type Download
R4638,9 — 3D Model STP Download
R4638,9 — Line Drawing PDF Download
