R46310.2
R46310.2
R46310.2

R46310.2

UGC DOR7625051
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$326.07 CAD - $326.07 CAD
$326.07 CAD
$326.07 CAD - $326.07 CAD
$326.07 CAD

Vendu en lots de : 1

Foret haute performance FORCE M avec queue cylindrique DIN 6535HA NC, diamètre 10,2 mm avec une longueur totale de 118 mm et une longueur de goujure de 70 mm selon la norme DIN 6537 L avec une pointe en croix à 4 facettes en S à 140°, en carbure monobloc avec revêtement TiAlN, âme continuellement amincie et trous d'arrosage pour un perçage à 5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R46310.2
GradeTiAlN
Product Number7625051
Product FamilyR463

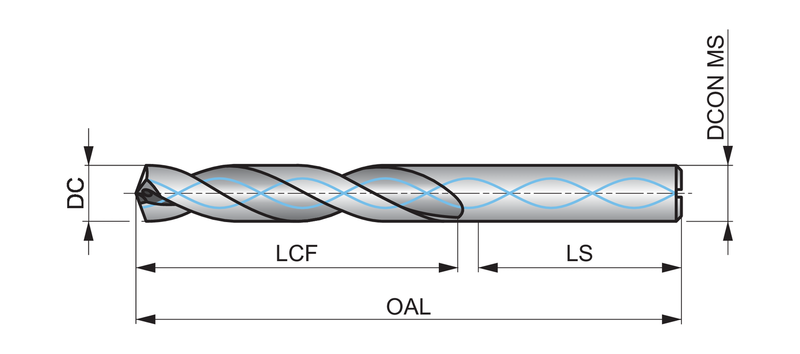

Dimensions
Cutting Diameter — in (DC)0.4016"
Cutting Diameter — mm (DC)10.2 mm
Overall Length — in (OAL)4.6457"
Overall Length — mm (OAL)118.0 mm
Flute Length — in (LCF)2.7559"
Flute Length — mm (LCF)70.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7625051
EAN7320760835586
File Type Download
R46310.2 — 3D Model STP Download
R46310.2 — Line Drawing PDF Download
