R46313.5
R46313.5
R46313.5

R46313.5

UGC DOR7625082
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$415.64 CAD - $415.64 CAD
$415.64 CAD
$415.64 CAD - $415.64 CAD
$415.64 CAD

Vendu en lots de : 1

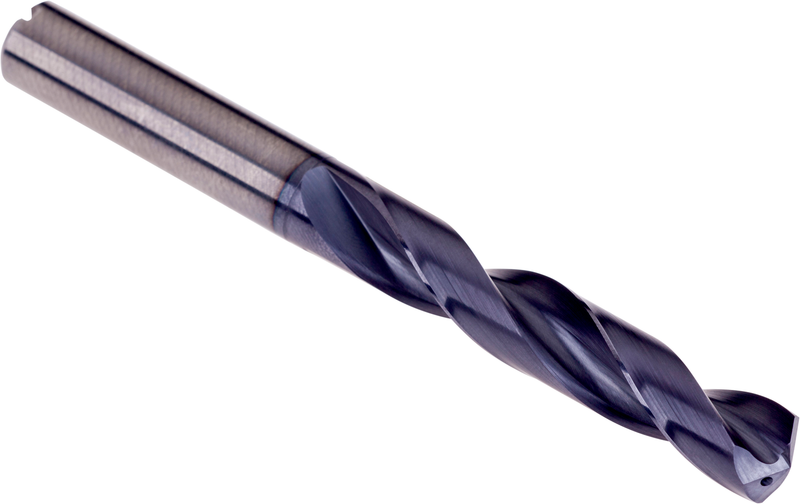

Foret FORCE M haute performance avec queue cylindrique NC DIN 6535HA, diamètre 13,5 mm avec une longueur totale de 124 mm et une longueur de goujure de 76 mm selon la norme DIN 6537 L avec une pointe fendue à 4 facettes en forme de S à 140°, en carbure monobloc avec revêtement TiAlN, âme parallèle continuellement amincie et trous d'arrosage pour le perçage 5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R46313.5
GradeTiAlN
Product Number7625082
Product FamilyR463
Dimensions
Cutting Diameter — in (DC)0.5315"
Cutting Diameter — mm (DC)13.5 mm
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.9921"
Flute Length — mm (LCF)76.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7625082
EAN7320760835890
File Type Download
R46313.5 — 3D Model STP Download
R46313.5 — Line Drawing PDF Download
