R46313.8
R46313.8
R46313.8

R46313.8

UGC DOR7625083
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$415.64 CAD - $415.64 CAD
$415.64 CAD
$415.64 CAD - $415.64 CAD
$415.64 CAD

Vendu en lots de : 1

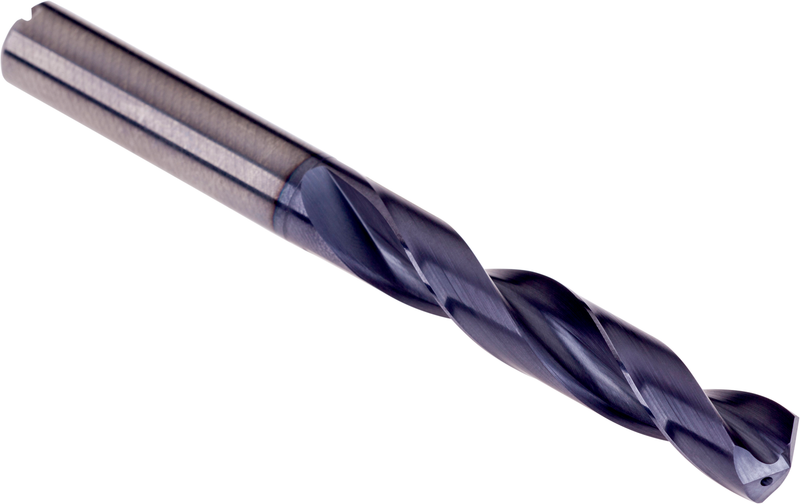

Foret haute performance FORCE M avec queue cylindrique NC DIN 6535HA, diamètre 13,8 mm, longueur totale 124 mm et longueur utile 76 mm selon la norme DIN 6537 L, avec pointe de centrage 4 facettes à coupe en S 140°, carbure monobloc avec revêtement TiAlN, âme parallèle amincie en continu et arrosage interne pour perçage 5xD sans débourrage dans les aciers inoxydables et super-alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R46313.8
GradeTiAlN
Product Number7625083
Product FamilyR463
Dimensions
Cutting Diameter — in (DC)0.5433"
Cutting Diameter — mm (DC)13.8 mm
Overall Length — in (OAL)4.8819"
Overall Length — mm (OAL)124.0 mm
Flute Length — in (LCF)2.9921"
Flute Length — mm (LCF)76.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7625083
EAN7320760835906
File Type Download
R46313.8 — 3D Model STP Download
R46313.8 — Line Drawing PDF Download
