UGC DOR7625099
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$595.57 CAD - $595.57 CAD
$595.57 CAD
$595.57 CAD - $595.57 CAD
$595.57 CAD

Vendu en lots de : 1

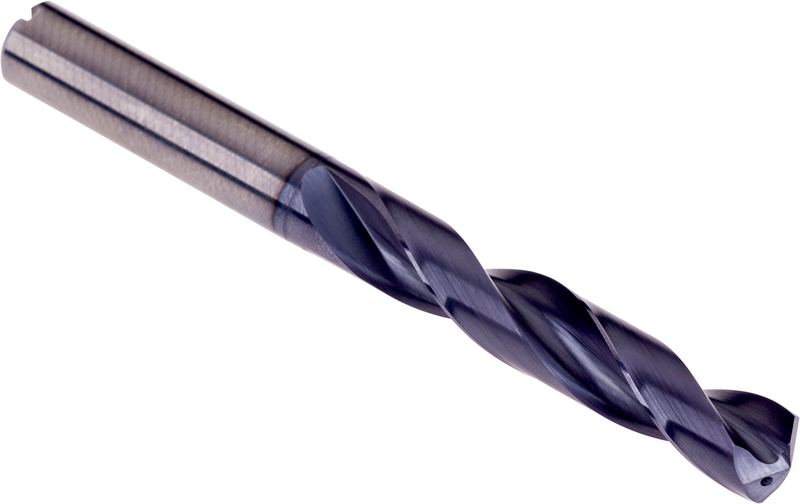

Foret haute performance FORCE M avec queue cylindrique DIN 6535HA NC, diamètre 16mm, longueur totale 133mm et longueur utile 82mm selon la norme DIN 6537 L, avec pointe en croix 4 facettes à 140°, en carbure monobloc avec revêtement TiAlN, âme amincie progressivement et arrosage interne pour perçage à 5xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R46316.0
GradeTiAlN
Product Number7625099
Product FamilyR463
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.2283"
Flute Length — mm (LCF)82.0 mm
Length × Diameter Ratio5
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 L
Reference Numbers
EDP Number7625099
EAN7320760836064
File Type Download
R46316.0 — 3D Model STP Download
R46316.0 — Line Drawing PDF Download
