R4677.7
R4677.7
R4677.7

R4677.7

UGC DOR7625165
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$164.21 CAD - $164.21 CAD
$164.21 CAD
$164.21 CAD - $164.21 CAD
$164.21 CAD

Vendu en lots de : 1

Foret haute performance FORCE M avec queue cylindrique DIN 6535HA NC, diamètre 7,7 mm, longueur totale 79 mm et longueur d'hélice 41 mm selon la norme DIN 6537 K avec pointe en croix à 4 facettes en S de 140°, en carbure monobloc avec revêtement TiAlN, âme continuellement amincie et trous d'arrosage pour perçage 3xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R4677,7
GradeTiAlN
Product Number7625165
Product FamilyR467

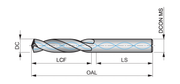

Dimensions
Cutting Diameter — in (DC)0.3031"
Cutting Diameter — mm (DC)7.7 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Flute Length — in (LCF)1.6142"
Flute Length — mm (LCF)41.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number7625165
EAN7320760836729
File Type Download
R4677.7 — 3D Model STP Download
R4677.7 — Line Drawing PDF Download
