R46729/64
R46729/64
R46729/64

R46729/64

UGC DOR7625213
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$271.07 CAD - $271.07 CAD
$271.07 CAD
$271.07 CAD - $271.07 CAD
$271.07 CAD

Vendu en lots de : 1

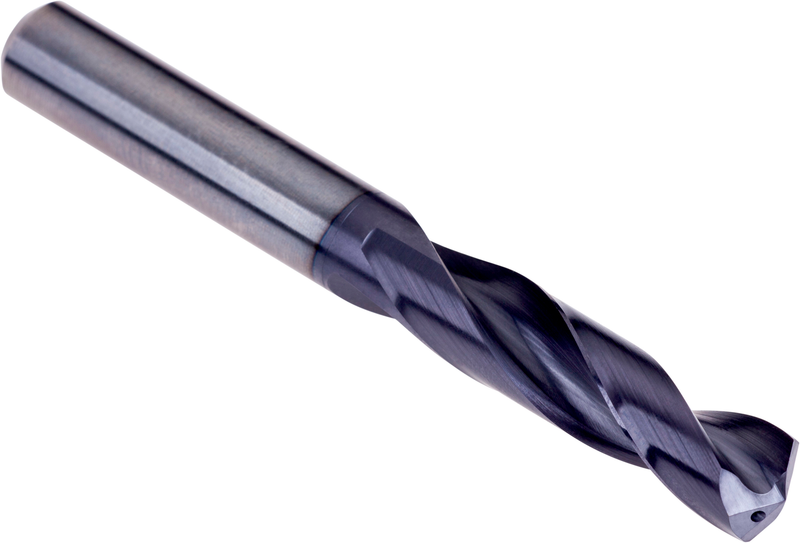

Foret haute performance FORCE M avec queue cylindrique DIN 6535HA NC, diamètre 0,4531" (29/64) avec une longueur totale de 102mm et une longueur de coupe de 55mm selon la norme DIN 6537 K avec une pointe auto-centrante en S à 4 facettes à 140°, carbure monobloc avec revêtement TiAlN, âme amincie progressivement et arrosage interne pour perçage 3xD sans débourrage dans l'acier inoxydable et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R46729/64
GradeTiAlN
Product Number7625213
Product FamilyR467

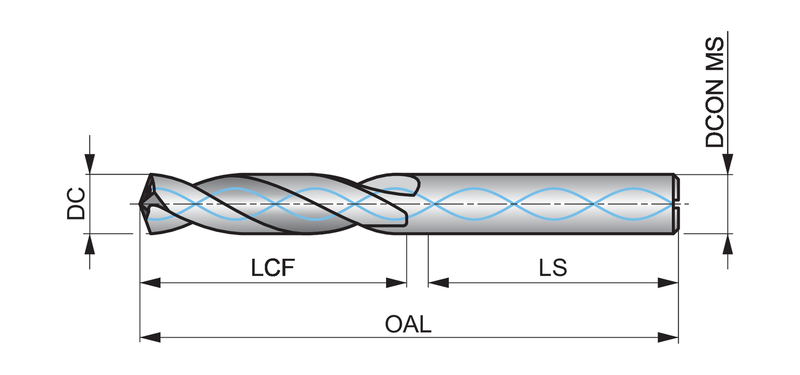

Dimensions
Cutting Diameter — in (DC)0.4531"
Cutting Diameter — mm (DC)11.51 mm
Cutting Diameter — Fractional29/64
Overall Length — in (OAL)4.0157"
Overall Length — mm (OAL)102.0 mm
Flute Length — in (LCF)2.1654"
Flute Length — mm (LCF)55.0 mm
Length × Diameter Ratio3
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Drill Point Angle (SIG)140°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 6537 K
Reference Numbers
EDP Number7625213
EAN7320760837207
File Type Download
R46729/64 — 3D Model STP Download
R46729/64 — Line Drawing PDF Download
