12A2R020A10-SCN05C-C
12A2R020A10-SCN05C-C
12A2R020A10-SCN05C-C

12A2R020A10-SCN05C-C

UGC DOR7636576
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$404.00 CAD - $404.00 CAD
$404.00 CAD
$404.00 CAD - $404.00 CAD
$404.00 CAD

Vendu en lots de : 1

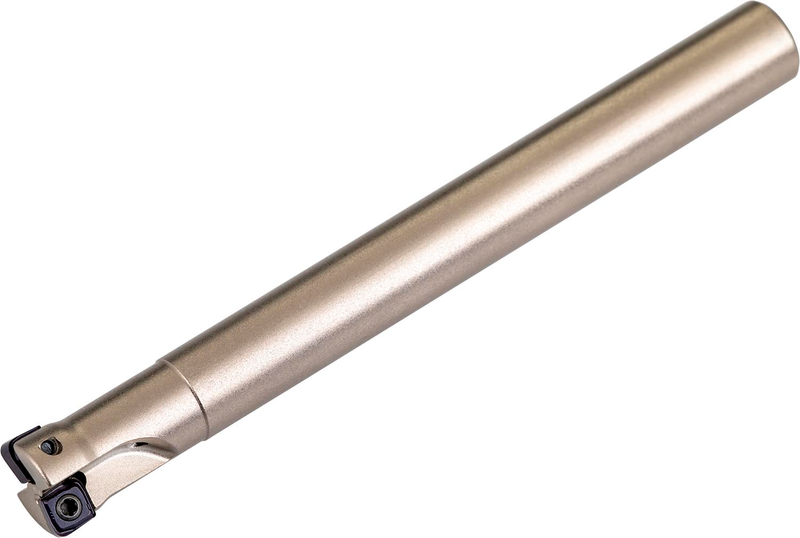

Fraise à copier avec double géométrie négative qui utilise 2 plaquettes double face CNHX 0502..., diamètre de coupe de 12 mm avec angle d'approche de 93° et queue cylindrique de 10 mm selon DIN 1835A, longueur fonctionnelle de 20 mm et longueur totale de 100 mm, arrosage central pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, l'usinage en ramping et le fraisage en plongée avec une profondeur de coupe maximale de 0,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)12A2R020A10-SCN05C-C
Product Number7636576
Product FamilySCN05C
Insert Geometry
Depth of Cut Max — mm (APMX)0.5 mm

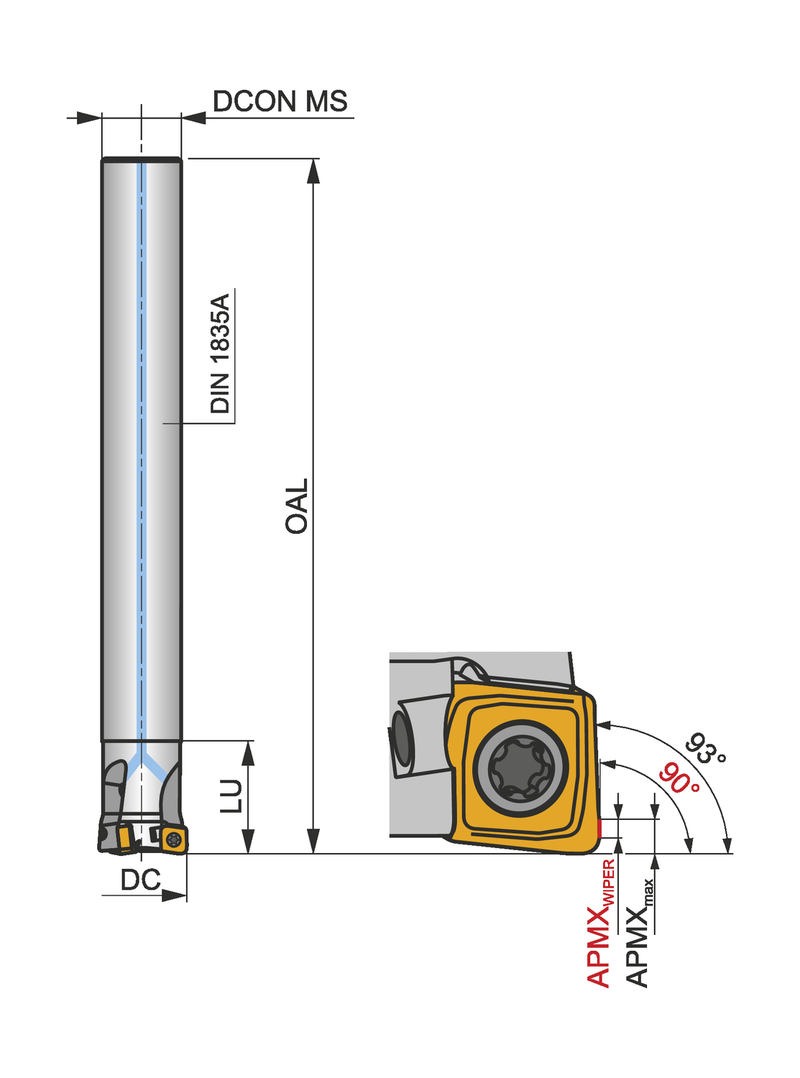

Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSCN05C
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7636576
EAN3603603536029
File Type Download
12A2R020A10-SCN05C-C — 3D Model STP Download
12A2R020A10-SCN05C-C — 2D Model DXF Download
12A2R020A10-SCN05C-C — Line Drawing PDF Download
