12A2R020M06-SCN05C-C
12A2R020M06-SCN05C-C
12A2R020M06-SCN05C-C

12A2R020M06-SCN05C-C

UGC DOR7636620
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$382.00 CAD - $382.00 CAD
$382.00 CAD
$382.00 CAD - $382.00 CAD
$382.00 CAD

Vendu en lots de : 1

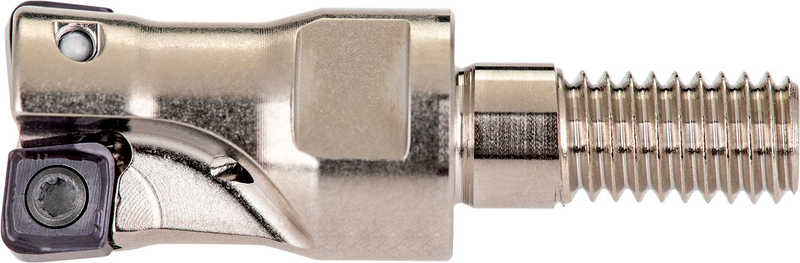

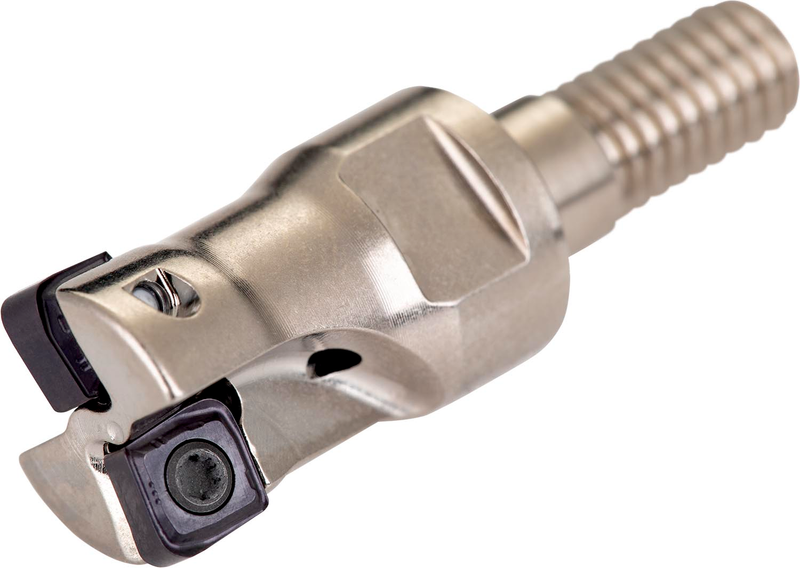

Fraise à copier avec une géométrie double négative qui utilise 2 plaquettes doubles CNHX 0502..., diamètre de coupe 12 mm avec un angle d'attaque de 93° et une queue filetée M6 pour porte-outils modulaires standard, longueur de dépassement de 20 mm, arrosage central pour le surfaçage, le copiage, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, l'usinage en rampe et le fraisage en plongée avec une profondeur de coupe maximale de 0,5 mm

For more information about this product, click here

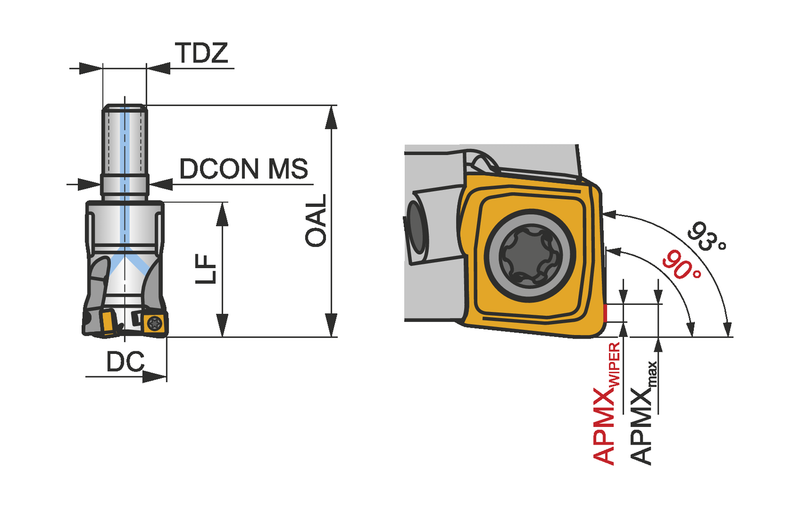

Identification
Ordering Code (ANSI/ISO)12A2R020M06-SCN05C-C
Product Number7636620
Product FamilySCN05C
Insert Geometry
Depth of Cut Max — mm (APMX)0.5 mm
Dimensions
Cutting Diameter — in (DC)0.472"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)1.378"
Overall Length — mm (OAL)35.0 mm
Functional Length — mm (LF)20.0 mm
Connection Dia. — in (DCON)0.256"
Connection Dia. — mm (DCON)6.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M6
Tool Information
Tool DesignSCN05C
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7636620
EAN3603603536050
File Type Download
12A2R020M06-SCN05C-C — 3D Model STP Download
12A2R020M06-SCN05C-C — 2D Model DXF Download
12A2R020M06-SCN05C-C — Line Drawing PDF Download
