16A3R025M08-SCN05C-C
16A3R025M08-SCN05C-C
16A3R025M08-SCN05C-C

16A3R025M08-SCN05C-C

UGC DOR7636621
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$425.00 CAD - $425.00 CAD
$425.00 CAD
$425.00 CAD - $425.00 CAD
$425.00 CAD

Vendu en lots de : 1

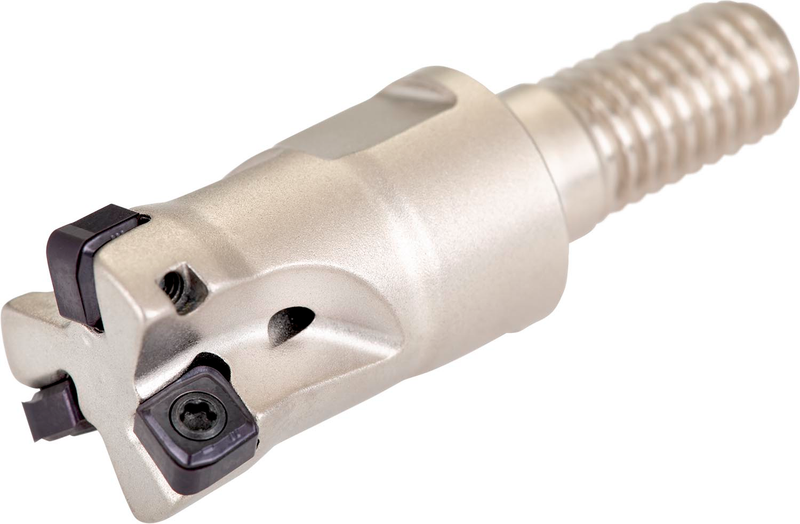

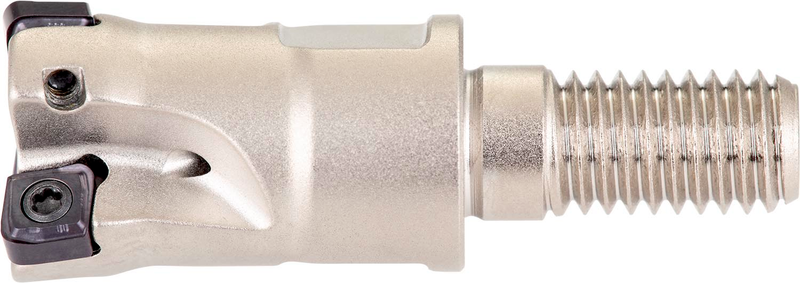

Fraise à copier avec géométrie double négative qui utilise 3 inserts double-face CNHX 0502..., diamètre de coupe 16 mm avec un angle d'attaque de 93° et une queue filetée M8 pour porte-outils modulaires standard, longueur de dépassement de 25 mm, arrosage interne pour le surfaçage, le fraisage en copie, le fraisage d'épaulement peu profond, le fraisage d'épaulement profond, l'interpolation hélicoïdale et le fraisage en plongée avec une profondeur de coupe maximale de 0,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16A3R025M08-SCN05C-C
Product Number7636621
Product FamilySCN05C
Insert Geometry
Depth of Cut Max — mm (APMX)0.5 mm

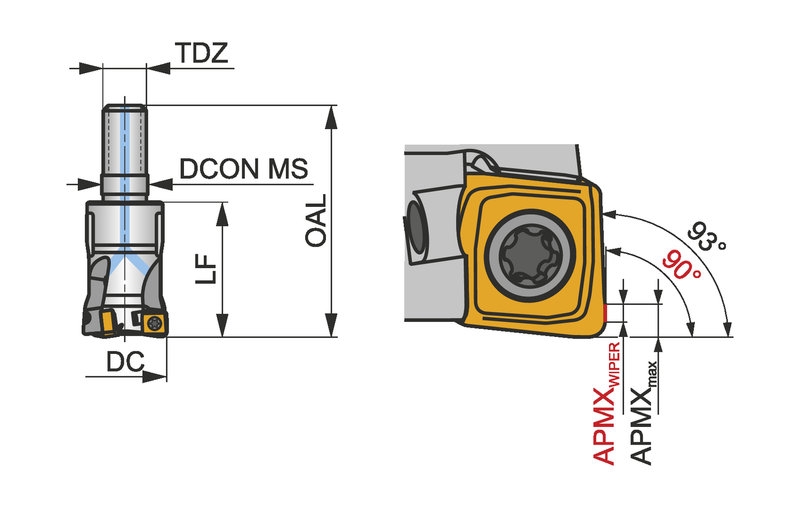

Dimensions
Cutting Diameter — in (DC)0.63"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)1.693"
Overall Length — mm (OAL)43.0 mm
Functional Length — mm (LF)25.0 mm
Connection Dia. — in (DCON)0.335"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M8
Tool Information
Tool DesignSCN05C
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7636621
EAN3603603536067
File Type Download
16A3R025M08-SCN05C-C — 3D Model STP Download
16A3R025M08-SCN05C-C — 2D Model DXF Download
16A3R025M08-SCN05C-C — Line Drawing PDF Download
