25A4R033M12-SWN04C-C
25A4R033M12-SWN04C-C
25A4R033M12-SWN04C-C

25A4R033M12-SWN04C-C

UGC DOR7636665
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$374.00 CAD - $374.00 CAD
$374.00 CAD
$374.00 CAD - $374.00 CAD
$374.00 CAD

Vendu en lots de : 1

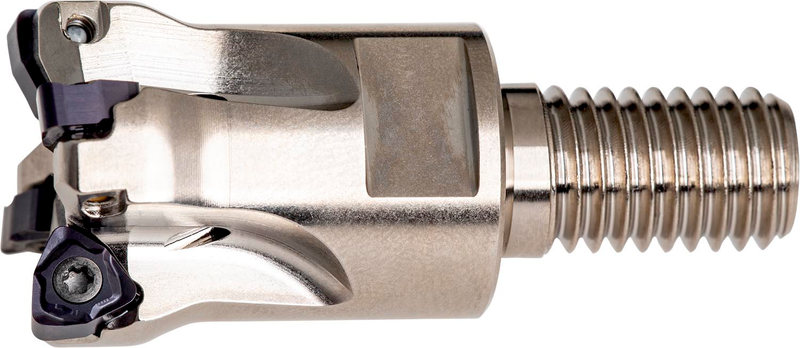

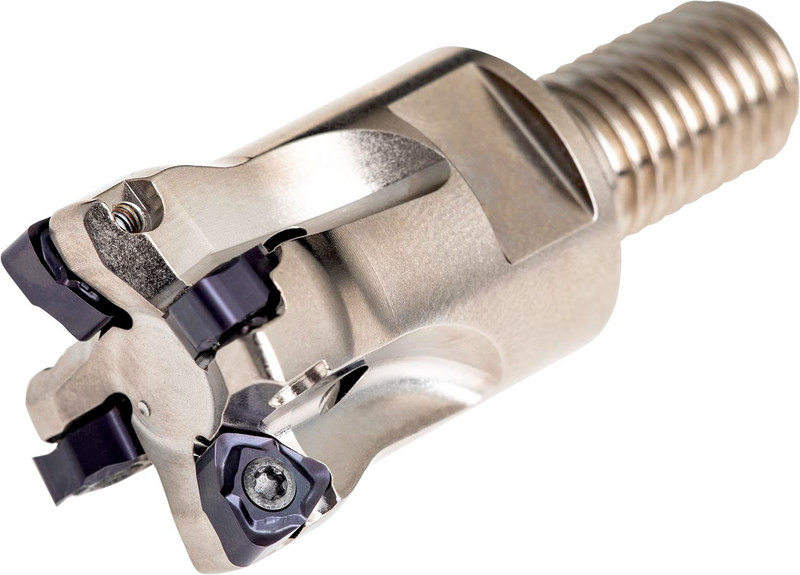

Fraise à surfacer-à-copier avec géométrie double négative utilisant 4 plaquettes double face WNHX 0403.., diamètre de coupe 25mm avec un angle d'attaque de 93° et une queue filetée M12 pour porte-outils modulaires standards, longueur de dépassement 33mm, arrosage central et pas différentiel pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, l'usinage en ramping et en plongée avec une profondeur de coupe maximale de 0,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A4R033M12-SWN04C-C
Product Number7636665
Product FamilySWN04C
Insert Geometry
Depth of Cut Max — mm (APMX)0.5 mm

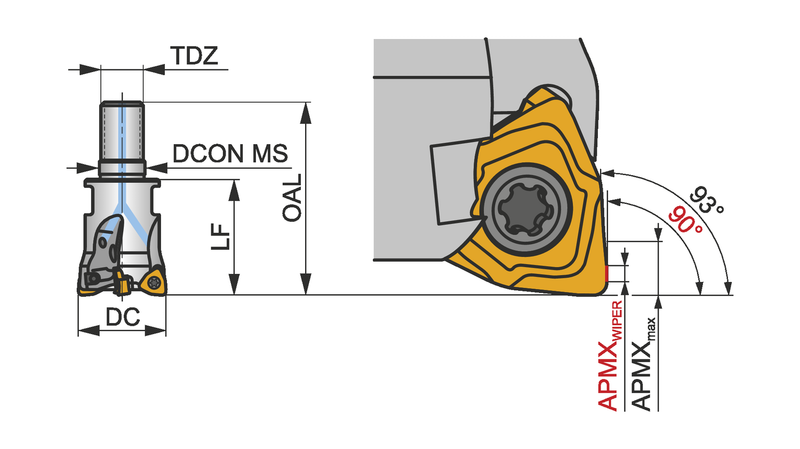

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)2.165"
Overall Length — mm (OAL)55.0 mm
Functional Length — mm (LF)33.0 mm
Connection Dia. — in (DCON)0.492"
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)M12
Tool Information
Tool DesignSWN04C
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7636665
EAN3603603536128
File Type Download
25A4R033M12-SWN04C-C — 3D Model STP Download
25A4R033M12-SWN04C-C — 2D Model DXF Download
25A4R033M12-SWN04C-C — Line Drawing PDF Download
