32A6R040M16-SWN04C-C
32A6R040M16-SWN04C-C
32A6R040M16-SWN04C-C

32A6R040M16-SWN04C-C

UGC DOR7636666
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$442.00 CAD - $442.00 CAD
$442.00 CAD
$442.00 CAD - $442.00 CAD
$442.00 CAD

Vendu en lots de : 1

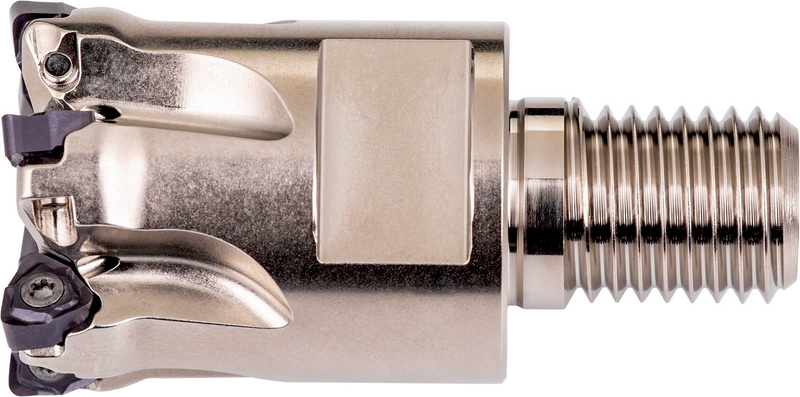

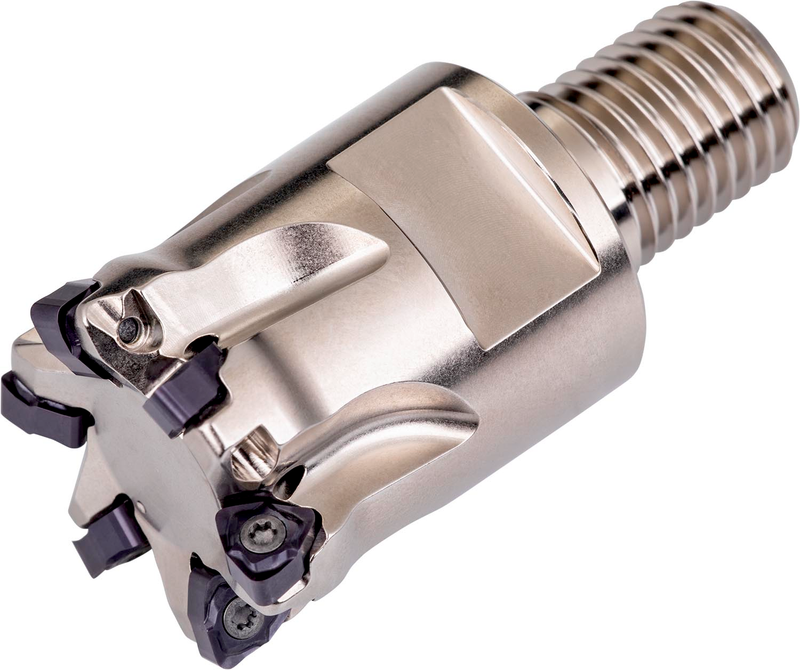

Fraise à copier avec double géométrie négative qui utilise 6 plaquettes WNHX 0403.. double face, diamètre de coupe 32mm avec un angle d'attaque de 93° et une queue filetée M16 pour porte-outils modulaires standards, longueur de dépassement de 40mm, arrosage interne et pas différentiel pour le surfaçage, le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage d'épaulements profonds, l'interpolation hélicoïdale et le fraisage en plongée avec une profondeur de coupe maximale de 0,5mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32A6R040M16-SWN04C-C
Product Number7636666
Product FamilySWN04C
Insert Geometry

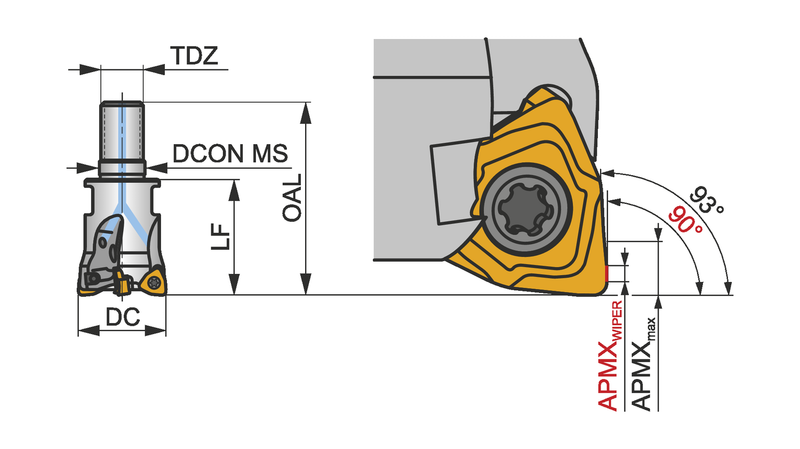

Depth of Cut Max — mm (APMX)0.5 mm
Dimensions
Cutting Diameter — in (DC)1.26"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.669"
Connection Dia. — mm (DCON)17.0 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)M16
Tool Information
Tool DesignSWN04C
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7636666
EAN3603603536135
File Type Download
32A6R040M16-SWN04C-C — 3D Model STP Download
32A6R040M16-SWN04C-C — 2D Model DXF Download
32A6R040M16-SWN04C-C — Line Drawing PDF Download
