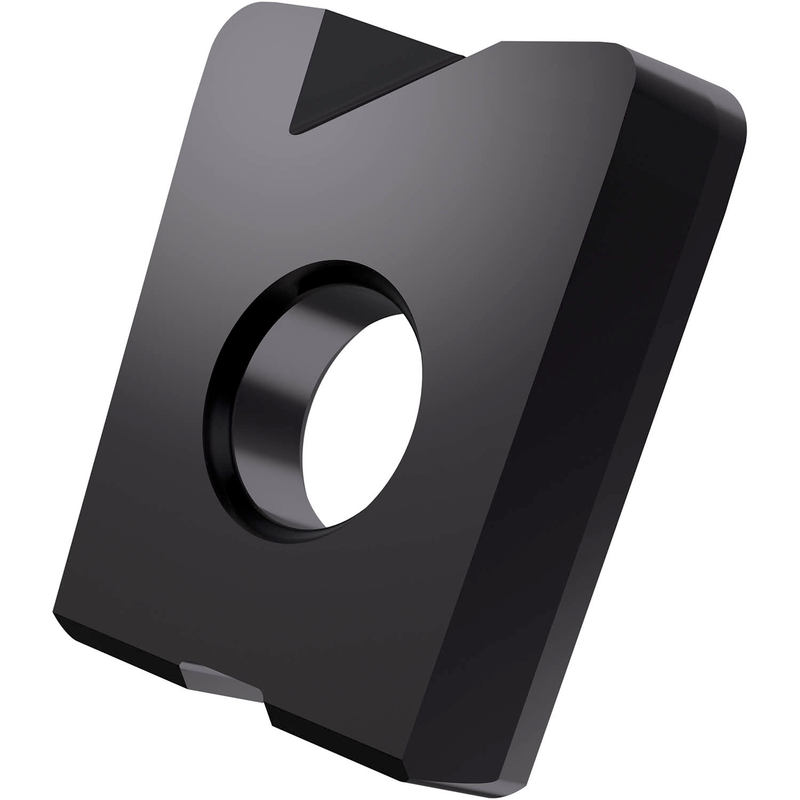

LC 1008-KP:M4310
LC 1008-KP:M4310

LC 1008-KP:M4310

UGC DOR7637586
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.11 CAD - $55.11 CAD
$55.11 CAD
$55.11 CAD - $55.11 CAD
$55.11 CAD

Vendu en lots de : 10

Plaquette torique à copier avec un diamètre de 10 mm (0,3937 po) et des rayons de coin de 0,8 mm (0,0315 po) pour une profondeur de coupe maximale de 0,8 mm (0,0315 po), géométrie KP et carbure WC-Co à grains fins revêtu PVD M4310 dans les gammes de qualités ISO K05-K15 et H05-H15 pour l'usinage de la fonte et des matériaux trempés avec les fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LC 1008-KP:M4310
GradeM4310
Chipbreaker (CBMD)PC
Product Number7637586
Product FamilyCL
Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.031"
Depth of Cut Max — mm (APMX)0.8 mm
Tool Information
Reference Numbers
EDP Number7637586
EAN3603603538184
File Type Download

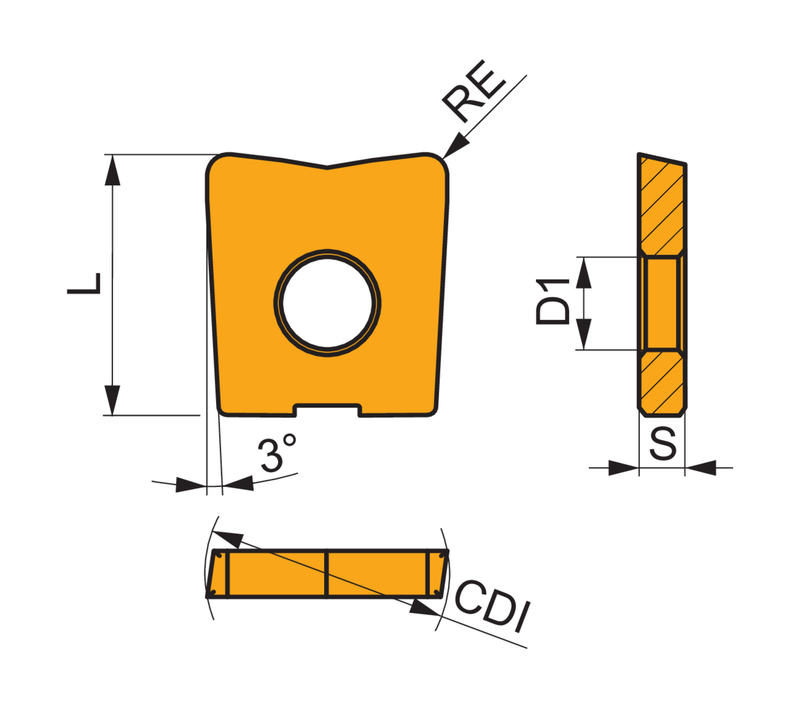

LC 1008-KP:M4310 — Line Drawing PDF Download
