CL 1010-CP:M4310
CL 1010-CP:M4310

CL 1010-CP:M4310

UGC DOR7637589
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.11 CAD - $55.11 CAD
$55.11 CAD
$55.11 CAD - $55.11 CAD
$55.11 CAD

Vendu en lots de : 10

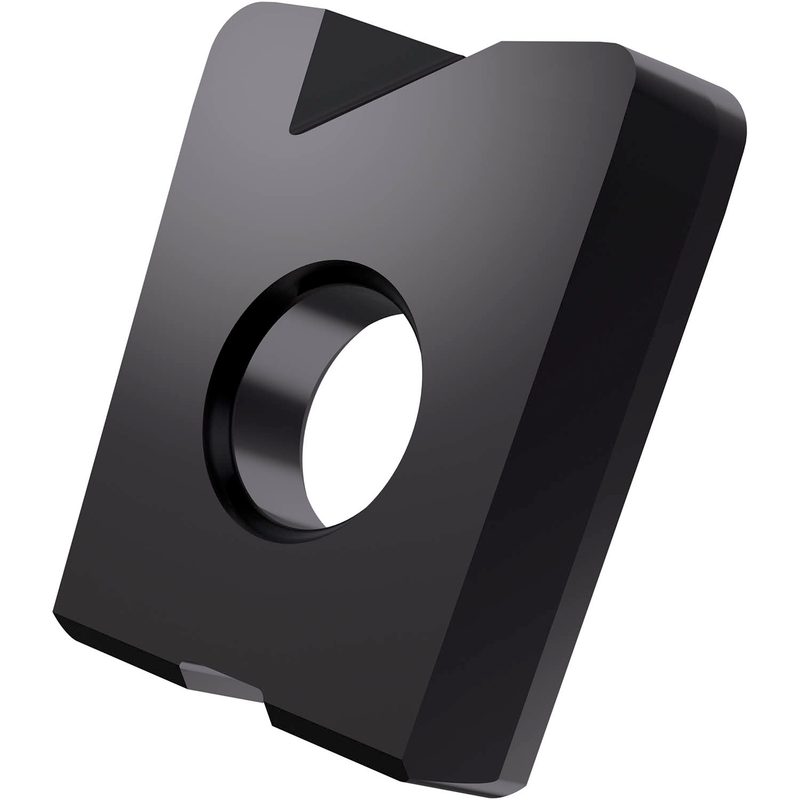

Plaquette toroïdale à copier avec un diamètre de 0,3937" et des rayons de pointe de 0,0394" pour une profondeur de coupe maximale de 0,0394", géométrie KP et carbure WC-Co à grain fin revêtu PVD M4310 dans les gammes de classes ISO K05-K15 et H05-H15 pour l'usinage de la fonte et des matériaux trempés avec des fraises à copier K2-SRC

For more information about this product, click here

Identification
Ordering Code (ANSI)LC 1010-KP:M4310
Product Name (ISO)CL 1010-CP:M4310
GradeM4310
Chipbreaker (CBMD)PC
Product Number7637589
Product FamilyCL

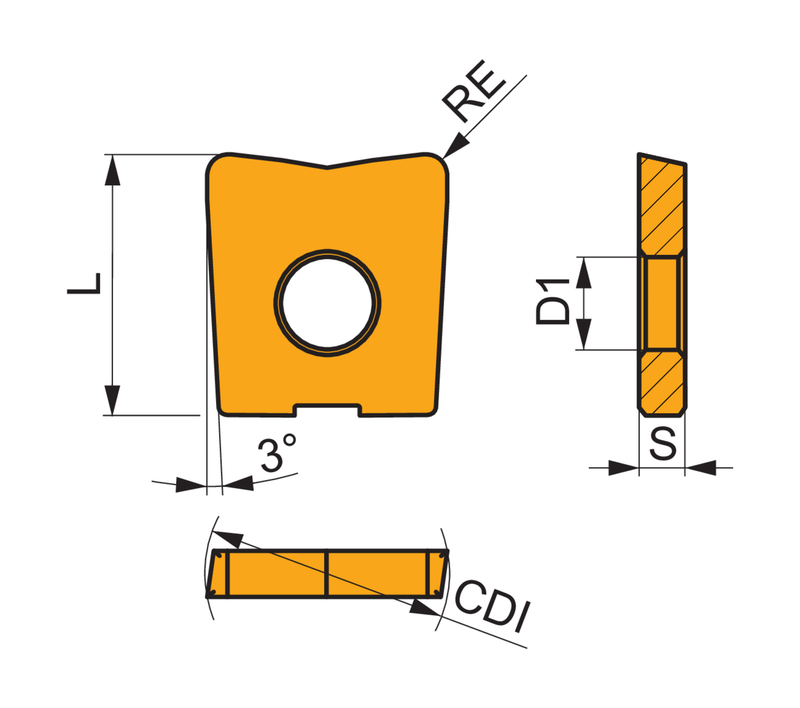

Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7637589
EAN3603603538214
File Type Download
CL 1010-CP:M4310 — Line Drawing PDF Download
