LC 1210-KP:M4310
LC 1210-KP:M4310

LC 1210-KP:M4310

UGC DOR7637601
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.37 CAD - $58.37 CAD
$58.37 CAD
$58.37 CAD - $58.37 CAD
$58.37 CAD

Vendu en lots de : 10

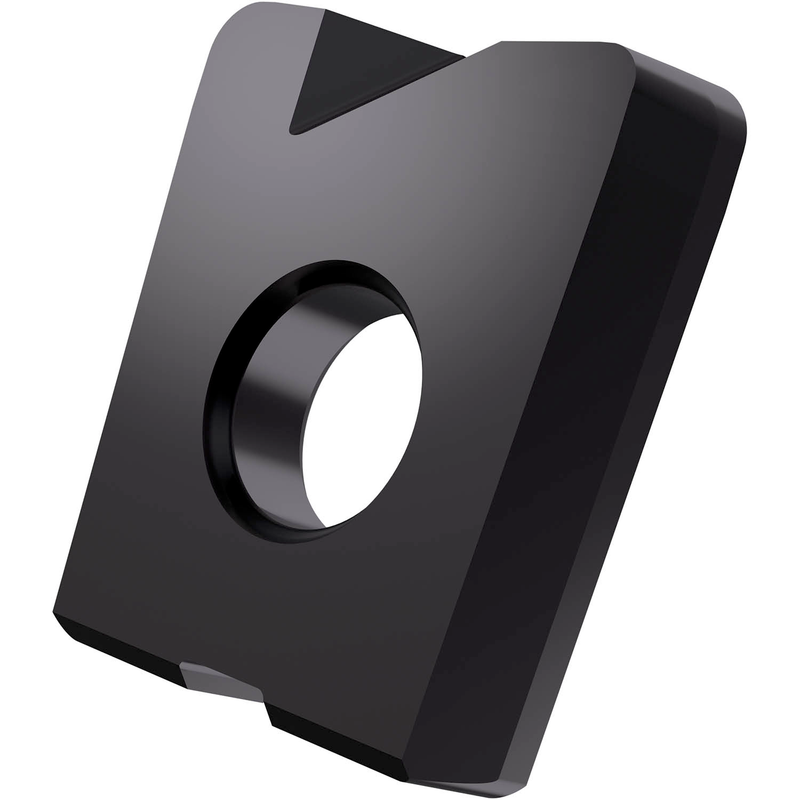

Plaquette toroïdale à copier d'un diamètre de 12 mm avec des rayons de coin de 1 mm pour une profondeur de coupe maximale de 1 mm, géométrie KP et carbure WC-Co à grains fins revêtu PVD M4310 dans les plages de nuances ISO K05-K15 et H05-H15 pour l'usinage de la fonte et des matériaux trempés avec des fraises à copier K2-SLC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LC 1210-KP:M4310
GradeM4310
Chipbreaker (CBMD)PC
Product Number7637601
Product FamilyCL
Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7637601
EAN3603603538238
File Type Download

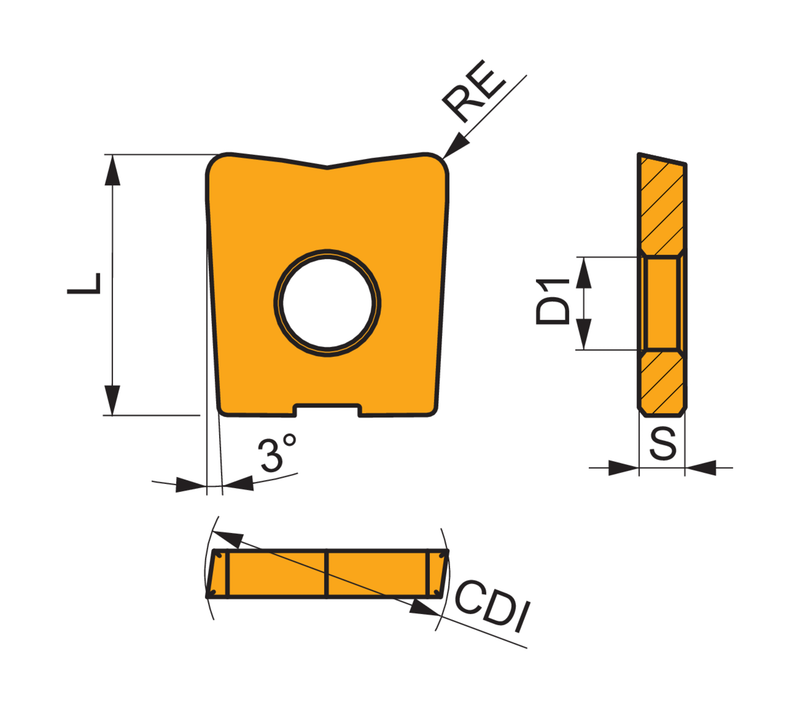

LC 1210-KP:M4310 — Line Drawing PDF Download
