LC 1210-KP:M8330
LC 1210-KP:M8330

LC 1210-KP:M8330

UGC DOR7637602
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.37 CAD - $58.37 CAD
$58.37 CAD
$58.37 CAD - $58.37 CAD
$58.37 CAD

Vendu en lots de : 10

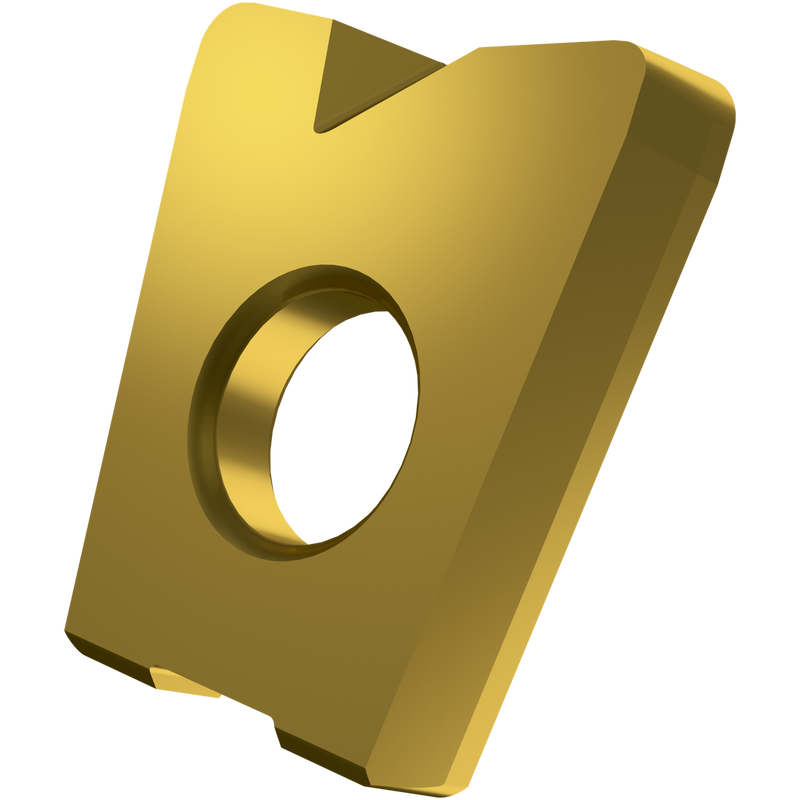

Plaquette de fraisage par copiage toroïdale d'un diamètre de 0,4724" et de rayons de coin de 0,0394" pour une profondeur de coupe maximale de 0,0394", géométrie KP et carbure WC-Co à grain fin avec revêtement PVD M8330 dans les plages de nuances ISO P20-P40 et K20-K40 pour l'usinage de l'acier et de la fonte avec des fraises à surfacer-dégrossir K2-SLC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LC 1210-KP:M8330
GradeM8330
Chipbreaker (CBMD)PC
Product Number7637602
Product FamilyCL
Insert Geometry
Insert DesignCL
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.098"
Insert Thickness — mm (S)2.5 mm
Corner Radius — in (RE)0.039"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.039"
Depth of Cut Max — mm (APMX)1.0 mm
Tool Information
Reference Numbers
EDP Number7637602
EAN3603603538245
File Type Download

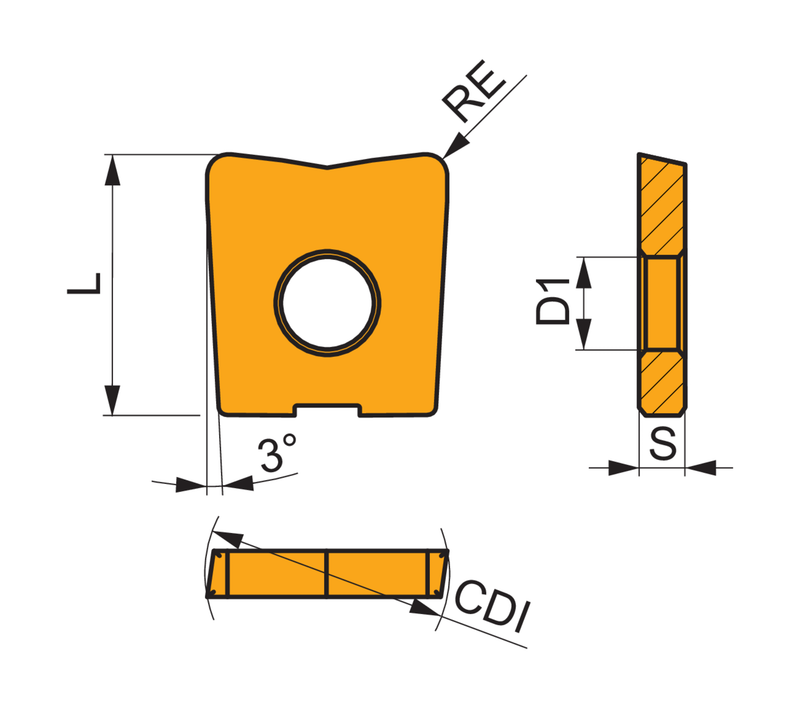

LC 1210-KP:M8330 — Line Drawing PDF Download
